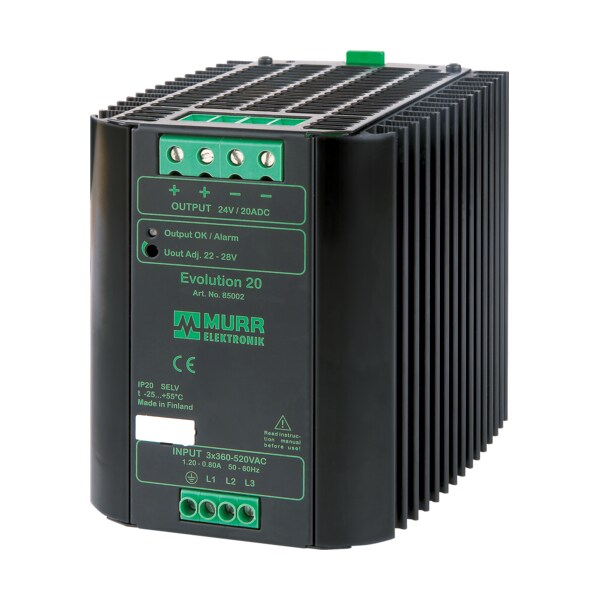

Power Supply, 324/572V AC; 480/745V DC, 24V DC, 20A, DIN Rail
| Item | Power Supply |
|---|---|
| Input Voltage | 324/572V AC; 480/745V DC |
| Output Voltage | 24V DC |
| Output Amps | 20 A |
| Mounting | DIN Rail |
| Phase - Electrical | Three |
| Height | 132 mm |
| Width | 113 mm |
| Depth | 136 mm |
| Hz | 50/60 Hz |
| Operating Temp. Range | -25 to 70 deg C |
| Standards | IEC 61010-2-201, EN 61204-3, EN 55011 A, EN 61000-3-2, SEMI F47 |
| Protection | IP20 |
| Ripple Volts Regulation | max. 50 mV eff/rms |
| Connection | Screw |
| Package Quantity | 1 |
