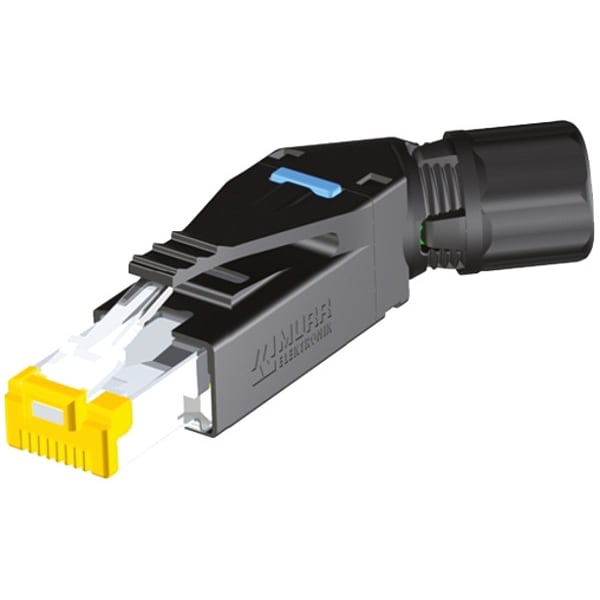

Conector, macho, 1.76A, plástico, 60V
| Item | Connector |
|---|---|
| Wire Size | 26 AWG to 22 AWG |
| Voltage Rating | 60V DC |
| Number of Poles | 8 |
| Performance Category | Cat6 |
| Data Rate | 10,000 MBps |
| Application | Data, EtherCat, Ethernet/IP |
| Connector Orientation | 45 Degrees Angled |
| Cable Diameter | 4.5 to 9 mm |
| IP Rating | IP20 |
| Connector Gender | Male |
| Housing Material | Plastic |
| Connection Type | Insulation Displacement |
| Minimum Operating Temperature | -40 deg C |
| Shielded | Yes |
| Standards | cURus Approval |
| Current Rating | 1.76 A |
| Package Quantity | 1 |
