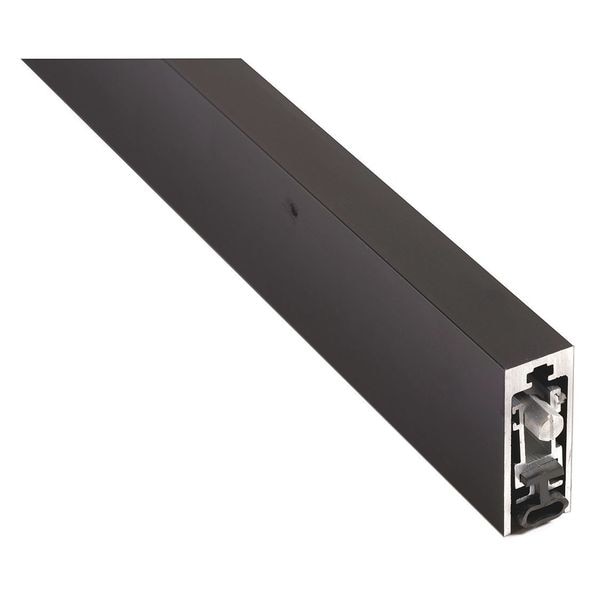

Auto Door Bottom, 48in.L
| Length | 48 in |
|---|---|
| Color | Black |
| Width | 15/16 in |
| Drop Bar Material | Aluminum |
| Flange Material | Aluminum |
| Standards | ANSI/BHMA A156.22, ASTM E283, BHMA, UL to ANSI and ANSI/UL1784 Category 'H' Complies with IBC and NFPA 105, UL to ANSI Complies with IBC NFPA 80 and NFPA 252, UL to CAN/ULC-S104 and ANSI Complies with NFPA 80 and NFPA 252 |
| Flange Height | 2-5/16 in |
| Overall Length | 48 in |
| Housing Material | Bronze |
| Insert Size | 7/8 in |
| Projection | 15/16 in |
| Flange Thickness | 0.094 in |
| Insert Color | Black |
| Hardware | Included |
| Flange Finish | Dark Bronze |
| Housing Thickness | 0.13 in |
| Finish | Mill |
| Performance | Heavy Duty |
| Flange Width | 15/16 in |
| Insert Material | Neoprene |
| For Use With | Doors |
| Item | Automatic Door Bottom |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Product Type | Door Bottom |
| UL Fire Rating | UL10C, UL10B |
| Overall Width | 2-15/16 in |
| Sweep Type | Looped |
| For Use With Door Type | Automatic Door |
| Features | Flame-Resistant, Ozone-Resistant, Moisture-Resistant, Mounts On Push Side of Door |
| Includes Hardware | Hardware Included |
| Performance Grade | 1 |
| ANSI/BHMA Finish | Unfinished |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
