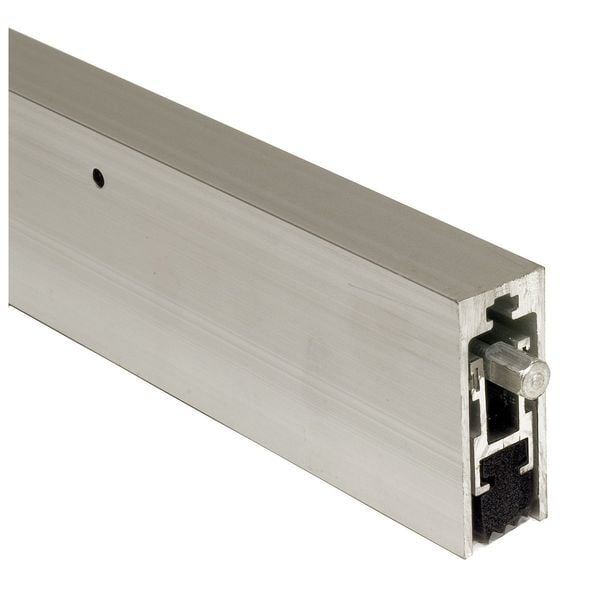

Automatic Door Bottom, 1/2"W x 36"L, Aluminum
| Length | 36 in |
|---|---|
| Color | Clear |
| Width | 1/2 in |
| Insert Material | Neoprene |
| Item | Automatic Door Bottom |
| Projection | 15/16 in |
| Insert Size | 1/2 in |
| Flange Height | 2-5/16 in |
| Housing Thickness | 0.09 in |
| For Use With | 36 in Wide Doors |
| Performance | Heavy Duty |
| Flange Thickness | 0.938 in |
| Flange Material | Aluminum |
| Housing Material | Aluminum |
| Insert Color | Black |
| Standards | ANSI/BHMA |
| Drop Bar Material | Aluminum |
| Finish | Anodized |
| Hardware | Included |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Product Type | Door Bottom |
| Performance Grade | 1 |
| Includes Hardware | Hardware Included |
| Overall Width | 2-5/16 in |
| Includes | #10 x 1 1/2" Stainless Steel Sheet Metal Screws |
| Sweep Type | Single Fin |
| Overall Length | 36 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
