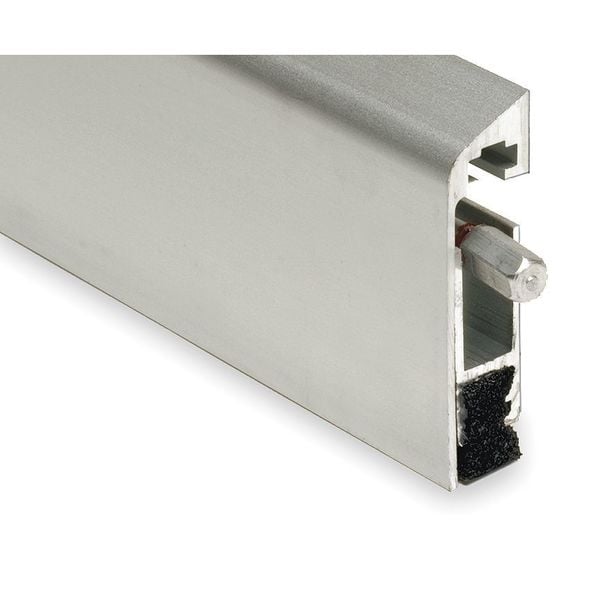

Automatic Door Bottom, 1/4x48In, Aluminum
| Length | 48 in |
|---|---|
| Color | Clear |
| Width | 1/4 in |
| Flange Material | Aluminum |
| Insert Material | Neoprene |
| Performance | Standard Duty |
| Standards | ANSI/BHMA A156.22, ANSI/BHMA, ASTM E283, BHMA, UL to ANSI and ANSI/UL1784 Category 'H' Complies with IBC and NFPA 105, UL to ANSI Complies with IBC NFPA 80 and NFPA 252, UL to CAN/ULC-S104 and ANSI Complies with NFPA 80 and NFPA 252 |
| Hardware | Included |
| For Use With | 48 in Wide Doors |
| Item | Automatic Door Bottom |
| Projection | 19/32 in |
| Housing Thickness | 0.06 in |
| Insert Size | 7/8 in |
| Flange Thickness | 0.594 in |
| Flange Width | 19/32 in |
| Finish | Anodized |
| Drop Bar Material | Aluminum |
| Insert Color | Black |
| Overall Length | 48 in |
| Housing Material | Aluminum |
| Flange Height | 2-1/4 in |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Product Type | Door Bottom |
| Door Width - Maximum | 48 in |
| Features | Fits Wood Fire Door Mortise Restrictions, Flame-Resistant, Moisture-Resistant |
| Overall Width | 2-1/4 in |
| UL Fire Rating | UL10C, UL10B |
| Includes | #8 x 1- 1/4" Stainless Steel Sheet Metal Screws |
| Sweep Type | Single Fin |
| Performance Grade | 1 |
| For Use With Door Type | Automatic Door |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
