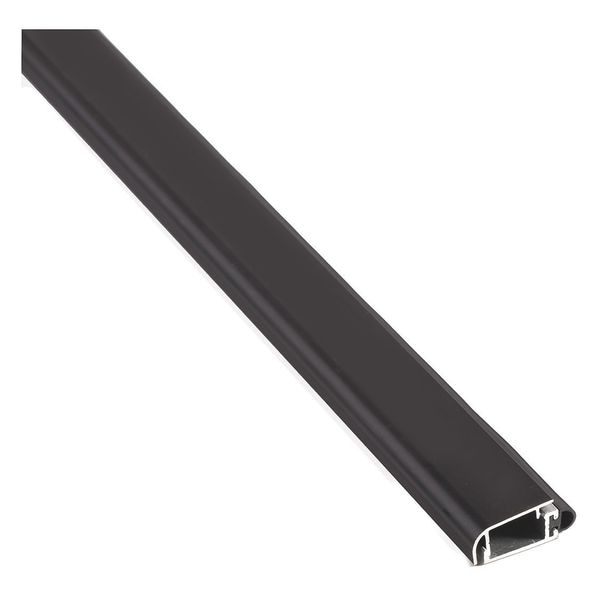

Concealed Fastener Seal, Dark Bronze
| For Use With | Doors |
|---|---|
| Overall Length | 3 ft |
| Projection | 7/16 in |
| Color | Dark Bronze |
| Item | Door Weatherstripping |
| Product Type | Door Weatherstripping |
| Insert Color | Black |
| Insert Material | EPDM |
| Insert Size | 3/16 in |
| Flange Material | Aluminum |
| Overall Height | 7/16 in |
| Mounting Type | Screw |
| Standards | ANSI/BHMA A156.22, ANSI/UL10B, ANSI/UL10C, ANSI/UL1784, ASTM E283, CAN/ULC-S104, NFPA 105, NFPA 252, NFPA 80 |
| Material | Aluminum |
| Overall Width | 1-3/16 in |
| Stays Flexible to | 20 Degrees F |
| Sold As | Roll |
| Flange Thickness | 0.44 in |
| Flange Finish | Dark Bronze |
| Flange Width | 1 in |
| Flange Color | Dark Bronze |
| UL Fire Rating | UL10C, UL10B |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Temperature - Maximum | 275 deg F |
| Flange Projection | 7/16 in |
| Fire Rating | 1 hr 30 min |
| Temperature - Minimum | -81 deg F |
| Mounting Style | Screw-In |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
