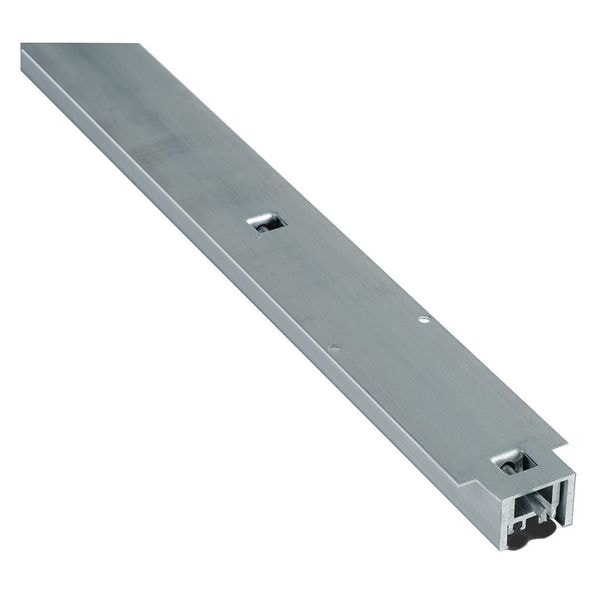

Door Bottom, Standard, 1/2In., Projection
| Length | 36 in |
|---|---|
| Color | Gray |
| Width | 1-1/2 in |
| For Use With | Doors |
| Insert Color | Black |
| Overall Length | 36 in |
| Finish | Mill |
| Flange Thickness | 0.063 in |
| Performance | Standard Duty |
| Hardware | Included |
| Flange Height | 3/4 in |
| Housing Material | Aluminum |
| Drop Bar Material | Aluminum |
| Insert Size | 1/8 in |
| Housing Thickness | 0.06 in |
| Flange Material | Aluminum |
| Flange Width | 1-1/2 in |
| Flange Finish | Mill |
| Insert Material | TPV |
| Projection | 1/2 in |
| Item | Automatic Door Bottom |
| Standards | ASTM E283, UL to ANSI and ANSI/UL1784 Category 'H' Complies with IBC and NFPA 105, UL to ANSI Complies with IBC NFPA 80 and NFPA 252, UL to CAN/ULC-S104 and ANSI Complies with NFPA 80 and NFPA 252 |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Product Type | Door Bottom |
| Overall Width | 1-1/2 in |
| UL Fire Rating | UL10C, UL10B |
| ANSI/BHMA Finish | Unfinished |
| Sweep Type | Dual Fin |
| Performance Grade | 2 |
| Includes Hardware | Hardware Included |
| Features | Flame-Resistant, Moisture-Resistant |
| For Use With Door Type | Automatic Door |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
