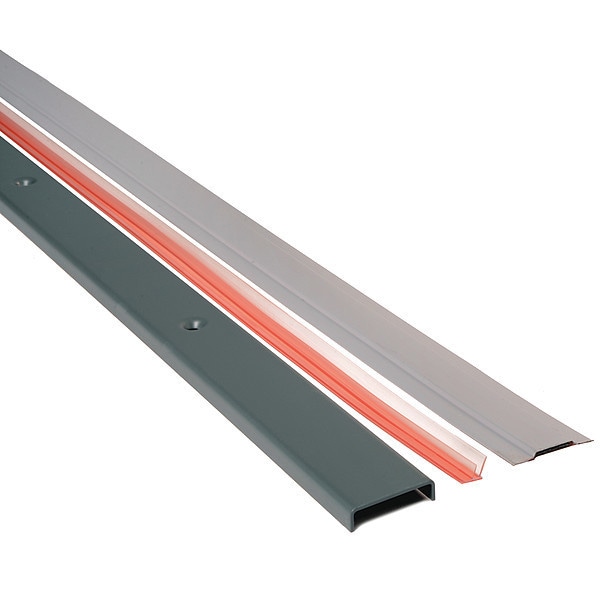

Fire and Smoke Seal, Gray, 3 ft L
| For Use With | Fire Doors |
|---|---|
| Overall Length | 3 ft |
| Projection | 3/8 in |
| Color | Gray |
| Item | Fire and Smoke Seal |
| Product Type | Fire and Smoke Seal |
| Insert Color | Gray |
| Insert Material | Vinyl |
| Insert Size | 3/8 in |
| Flange Material | Aluminum |
| Overall Height | 3/8 in |
| Standards | ANSI/UL10B, ANSI/UL10C, NFPA 252, NFPA 80 |
| Stays Flexible to | -60 Degrees F |
| Overall Width | 1-7/16 in |
| Flange Width | 1-7/16 in |
| Flange Thickness | 0.06 in |
| Sold As | Set |
| Flange Color | Gray |
| UL Fire Rating | UL10C, UL10B |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Includes | #10 x 1 in Stainless Steel Sheet Metal Screws |
| Material | Steel |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Fire Rating | 1 hr 30 min |
| Gap - Minimum | 1/8 in |
| Temperature - Minimum | -60 deg F |
| Mounting Style | Screw-In |
| Includes Hardware | Hardware Included |
| Gap - Maximum | 5/16 in |
| Flange Projection | 3/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
