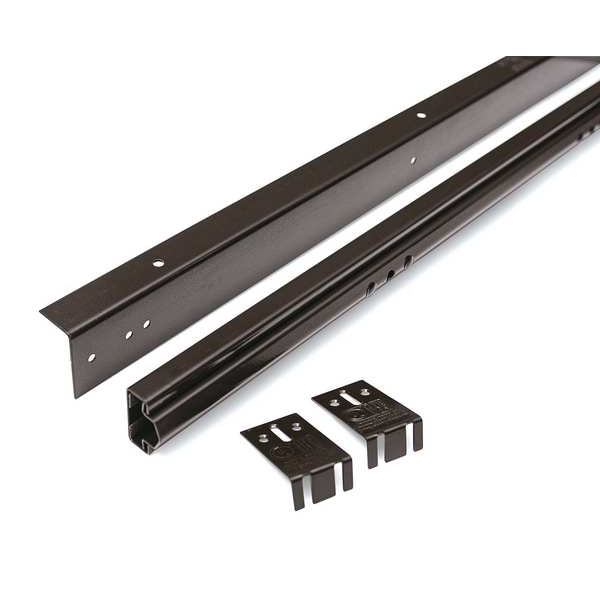

Fire Door Bottom, SS, Powder Coated
| Length | 36 in |
|---|---|
| Color | Dark Bronze |
| Width | 1-1/2 in |
| Insert Size | 1/2 in |
| Drip Cap Projection | Not Applicable |
| Performance | Standard Duty |
| UL Fire Rating | UL10B |
| Item | Door Sweep |
| Finish | Powder Coated |
| Insert Material | Not Applicable |
| Housing Material | Stainless Steel |
| Flange Material | Stainless Steel |
| Housing Thickness | Not Applicable |
| Flange Height | 5/8 in |
| Overall Width | 1-1/2 in |
| Flange Thickness | 0.063 in |
| Standards | UL to ANSI/10C Complies with IBC NFPA 80 and NFPA 252, UL to CAN/ULC-S104 and ANSI Complies with NFPA 80 and NFPA 252 |
| Projection | 1 in |
| Overall Length | 36 in |
| Insert Color | Not Applicable |
| Hardware | Included |
| For Use With | Hollow Metal Doors; Wood Doors |
| Product Type | Door Bottom |
| Includes Hardware | Hardware Included |
| Fire Rating | 90 min |
| Performance Grade | 2 |
| Sweep Type | Looped |
| Features | L-Bracket Allows to Install While Door Remains on Hinges, May Be Fastened to The Underside of The Door's Bottom Rail |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
