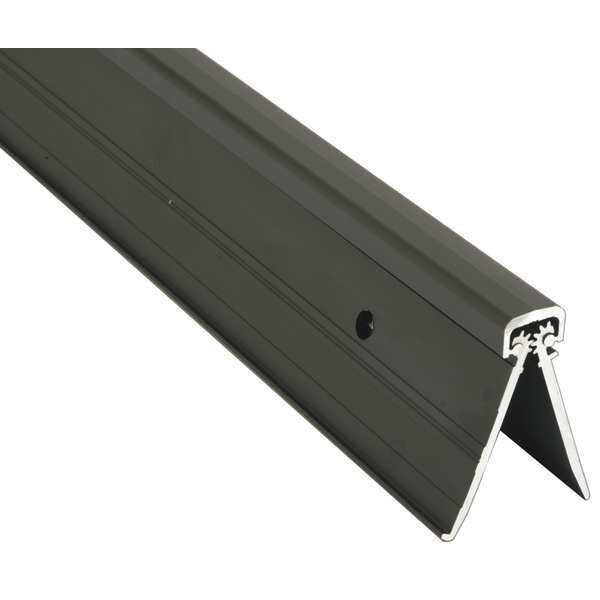

Piano Hinge, Aluminum Alloy, Concealed Mounting, 1 15/16 in Leaf W x 83 in Leaf H
| Item | Piano Hinge |
|---|---|
| Door Leaf Height | 83 in |
| Door Leaf Thickness | 1/8 in |
| Door Leaf Width | 1-15/16 in |
| Load Capacity | 600 lb |
| Ligature Resistant | No |
| Holes per Leaf | 19 |
| Material | Aluminum Alloy |
| Finish | Dark Bronze Anodized |
| Mounting | Concealed |
| Frame Leaf Width | 1-15/16 in |
| Holes | With |
| Frame Leaf Height | 83 in |
| Frame Leaf Thickness | 1/8 in |
| Range of Motion | 180 deg |
| Hole Spacing | Varies |
| Overall Width | 4-11/16 in |
| Hardware | Included |
| Standards | ANSI/BHMA A156.26 Grade 1 |
| Required Door Thickness | 1-3/4 in |
| Orientation | Non Handed |
| Features | Proprietary Teflon Infused Self-Lubricating Bearings, Intermeshing Gears |
| Overall Knuckle Height | 11/16 in |
| UL Fire Rating | UL10C |
| Hand Orientation | Non-Handed |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Includes Hardware | Hardware Included |
| Number of Holes per Leaf | 19 |
| Resistance Properties | Wear-Resistant |
| Door Thickness - Maximum | 1 3/4 in |
| Fire Rating | 90 min |
| Range of Motion - Maximum | 180 deg |
| ANSI/BHMA Finish | Oxidized Satin Bronze-Plated, Oil Rubbed |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
