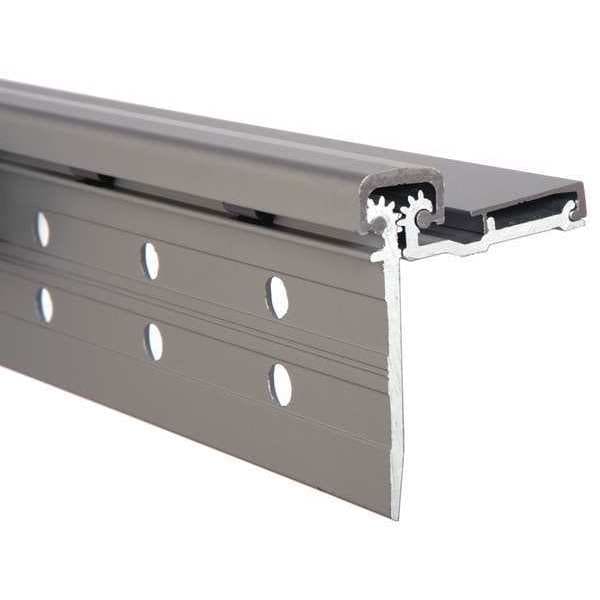

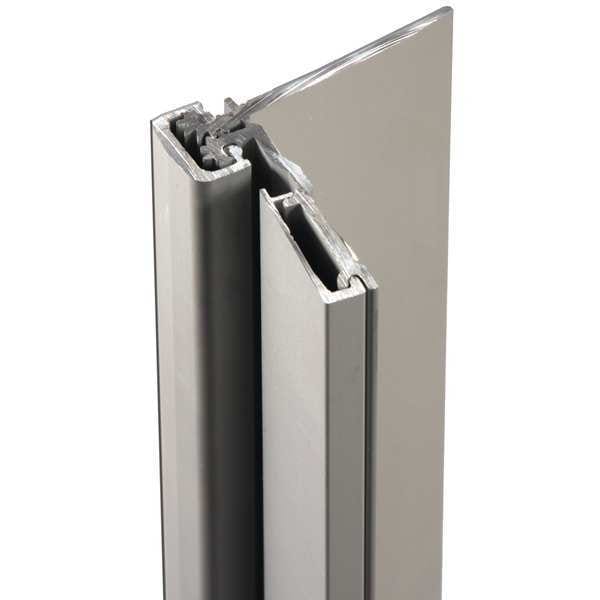

Piano Hinge, Bronze, Half Surface Mounting, 1 15/16 in Leaf W x 83 in Leaf H, Anodized Aluminum
| Item | Piano Hinge |
|---|---|
| Material | Bronze |
| Mounting | Half Surface |
| Load Capacity | 600 lb |
| Range of Motion | 180 deg |
| Ligature Resistant | No |
| Holes per Leaf | 19, 16 |
| Finish | Anodized Aluminum |
| Holes | With |
| Door Leaf Width | 1-13/16 in |
| Door Leaf Height | 83 in |
| Door Leaf Thickness | 1/8 in |
| Frame Leaf Width | 1-15/16 in |
| Frame Leaf Height | 83 in |
| Frame Leaf Thickness | 1/8 in |
| Hole Spacing | Varies |
| Orientation | Non Handed |
| Features | Proprietary Teflon Infused Self-Lubricating Bearings, Intermeshing Gears |
| Required Door Thickness | 1-3/4 in to 2-1/4 in |
| Hardware | Included |
| Overall Width | 4-1/16 in |
| Standards | ANSI/BHMA A156.26 Grade 1 |
| Overall Knuckle Height | 11/16 in |
| UL Fire Rating | UL10C |
| Hand Orientation | Non-Handed |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Door Thickness - Maximum | 2 1/4 in |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 180 deg |
| Fire Rating | 90 min |
| Resistance Properties | Wear-Resistant |
| ANSI/BHMA Finish | Clear Anodized, Satin Aluminum |
| Door Thickness - Minimum | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
