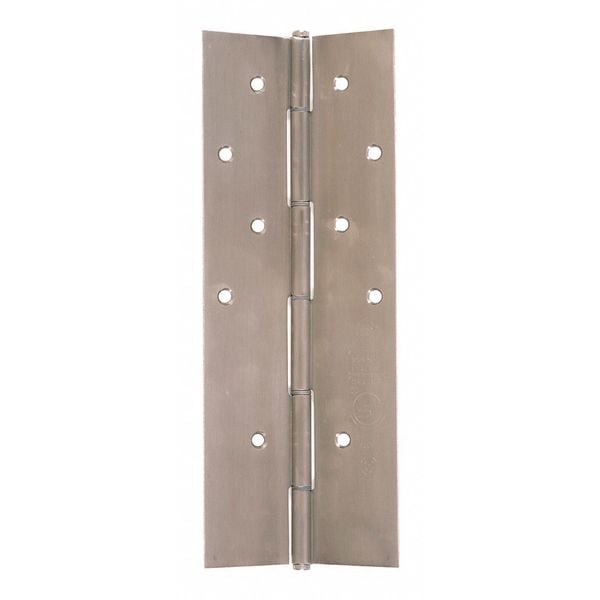

Piano Hinge, Stainless Steel, Concealed Mounting, 2 3/16 in Leaf W x 95 1/8 in Leaf H
| Item | Piano Hinge |
|---|---|
| Material | Stainless Steel |
| Mounting | Concealed |
| Load Capacity | 600 lb |
| Range of Motion | 180 deg |
| Ligature Resistant | No |
| Finish | Brushed Stainless Steel |
| Holes per Leaf | 23 |
| Holes | With |
| Door Leaf Width | 2-3/16 in |
| Door Leaf Height | 95-1/8 in |
| Door Leaf Thickness | 0.05 in |
| Frame Leaf Width | 2-3/16 in |
| Frame Leaf Height | 95-1/8 in |
| Frame Leaf Thickness | 0.05 in |
| Hardware | Included |
| Hole Spacing | 12 in |
| UL Fire Rating | UL10C |
| Overall Width | 4-3/8 in |
| Length | 95 in |
| Orientation | Reversible |
| Features | Medical Type Self-Lubricating Flanged Bearings, Pin and Barrel Design |
| Pin Material | Stainless Steel |
| ADA Compliant | Yes |
| Pin Type | Button Tip |
| Required Door Thickness | 1-3/4 in |
| Pin Dia. | 3/16 in |
| Overall Knuckle Height | 2 in |
| Standards | ANSI/BHMA A156.26 Grade 1 |
| Hand Orientation | Non-Handed |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Number of Holes per Leaf | 23 |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 180 deg |
| Hinge Length | 95.13 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Door Thickness - Maximum | 1 3/4 in |
| Fire Rating | 3 hr |
| Pin Diameter | 3/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
