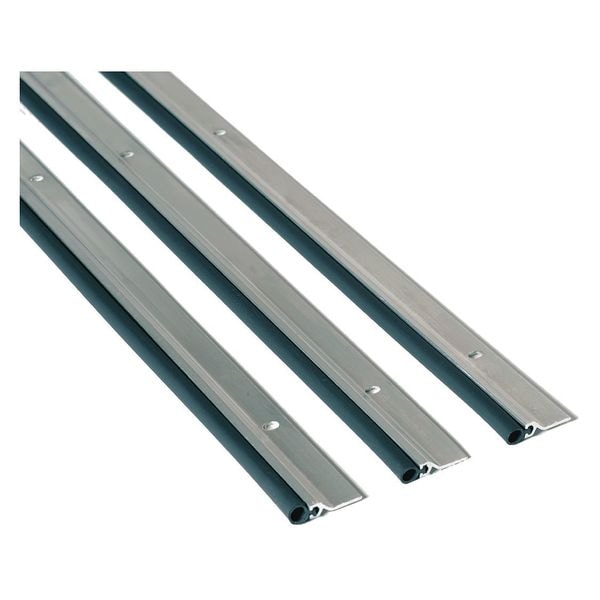

Weatherstrip, Hollow Bulb Insert
| For Use With | Doors |
|---|---|
| Overall Length | 7 ft |
| Projection | 5/16 in |
| Item | Door Weatherstripping |
| Product Type | Weatherstripping |
| Insert Color | Black |
| Insert Material | Silicone |
| Insert Size | 5/16 in |
| Flange Material | Aluminum |
| Overall Height | 1-1/16 in |
| Mounting Type | Surface |
| Standards | ANSI/BHMA A156.22, ASTM E2235, ASTM E283, ASTM E90, UL to ANSI, UL to ANSI and ANSI/UL1784, UL to CAN/ULC-S104 and ANSI Complies with NFPA 80 and NFPA 252 |
| Flange Height | 1/4 in |
| Stays Flexible to | -100 Degrees F |
| Fire Rated | Yes |
| Flange Thickness | 0.063 in |
| Hardware | Included |
| Includes | #6 x 3/4 in Stainless Steel Sheet Metal Screws |
| Flange Color | Gray |
| Flange Finish | Mill |
| Overall Width | 1-3/16 in |
| Flange Width | 7/8 in |
| Insert Type | Bulb |
| Max. Door Gap | 1/8 in |
| Sold As | Set |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| UL Fire Rating | UL10C, UL10B |
| Temperature - Minimum | -100 deg F |
| Insert Size - Maximum | 5/16 in |
| Includes Hardware | Hardware Included |
| Flange Projection | 1/4 in |
| Gap - Maximum | 1/8 in |
| Temperature - Maximum | 500 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
