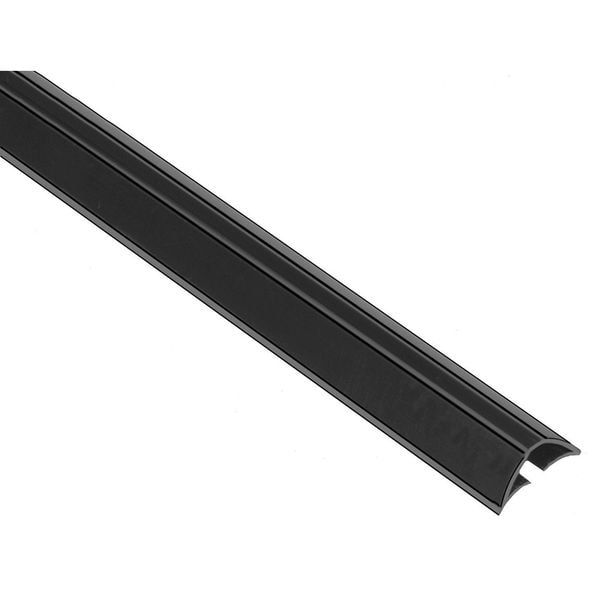

Smoke Seal, 4 ft., Charcoal, TPE Rubber
| For Use With | 48 in W Doors |
|---|---|
| Overall Length | 4 ft |
| Projection | 7/16 in |
| Color | Charcoal |
| Item | Smoke Seal |
| Product Type | Smoke Seal |
| Insert Color | Brown |
| Insert Material | TPE Rubber |
| Insert Size | 1/2" |
| Overall Height | 1/2 in |
| Mounting Type | Self-Adhesive |
| Standards | ANSI/BHMA A156.22, ANSI/UL10B, ANSI/UL10C (Category H), ANSI/UL1784, ASTM E2235, ASTM E283, ASTM E90, CAN/ULC-S104, NFPA 252, NFPA 80 |
| Sold As | Roll |
| Overall Width | 1/2 in |
| Stays Flexible to | 0 Degrees to 190 Degrees F |
| Material | TPE |
| UL Fire Rating | UL10C, UL10B |
| Width (In.) | 7/16 |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Height | 7/16 |
| Width | 7/16 |
| Length | 4 ft |
| Projection (In.) | 7/16 |
| Temperature - Minimum | -60 deg F |
| Inside Diameter | Not Applicable |
| Seal Shape | Batwing |
| Resistance Properties | Abrasion Resistant, Corrosion Resistant, Flame Retardant, UV Resistant, Water Resistant |
| Thickness | Not Applicable |
| Fire Rating | 1 hr 30 min |
| Temperature - Maximum | 275 deg F |
| Mounting Style | Self-Adhesive |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
