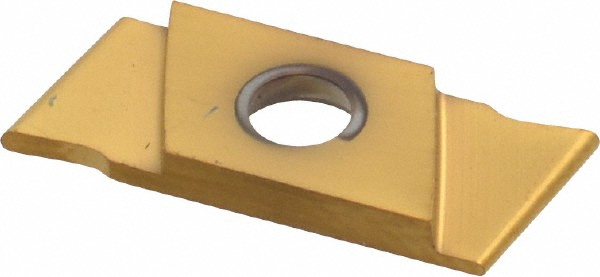

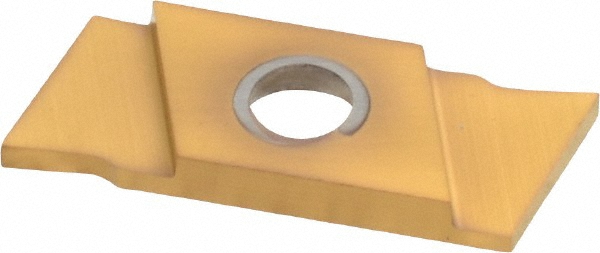

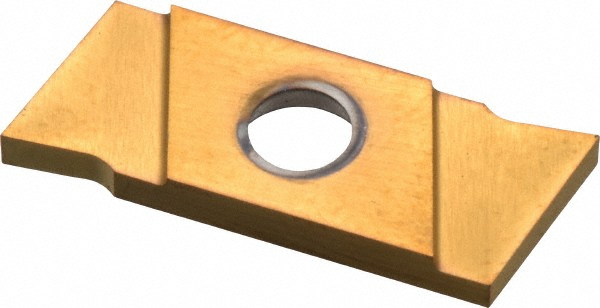

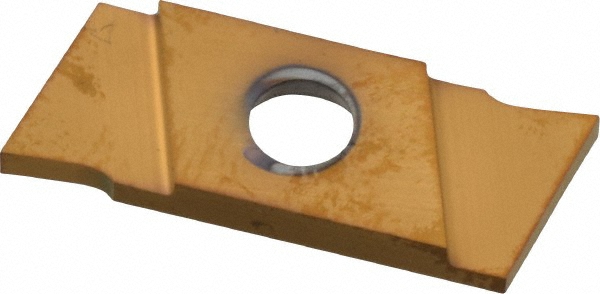

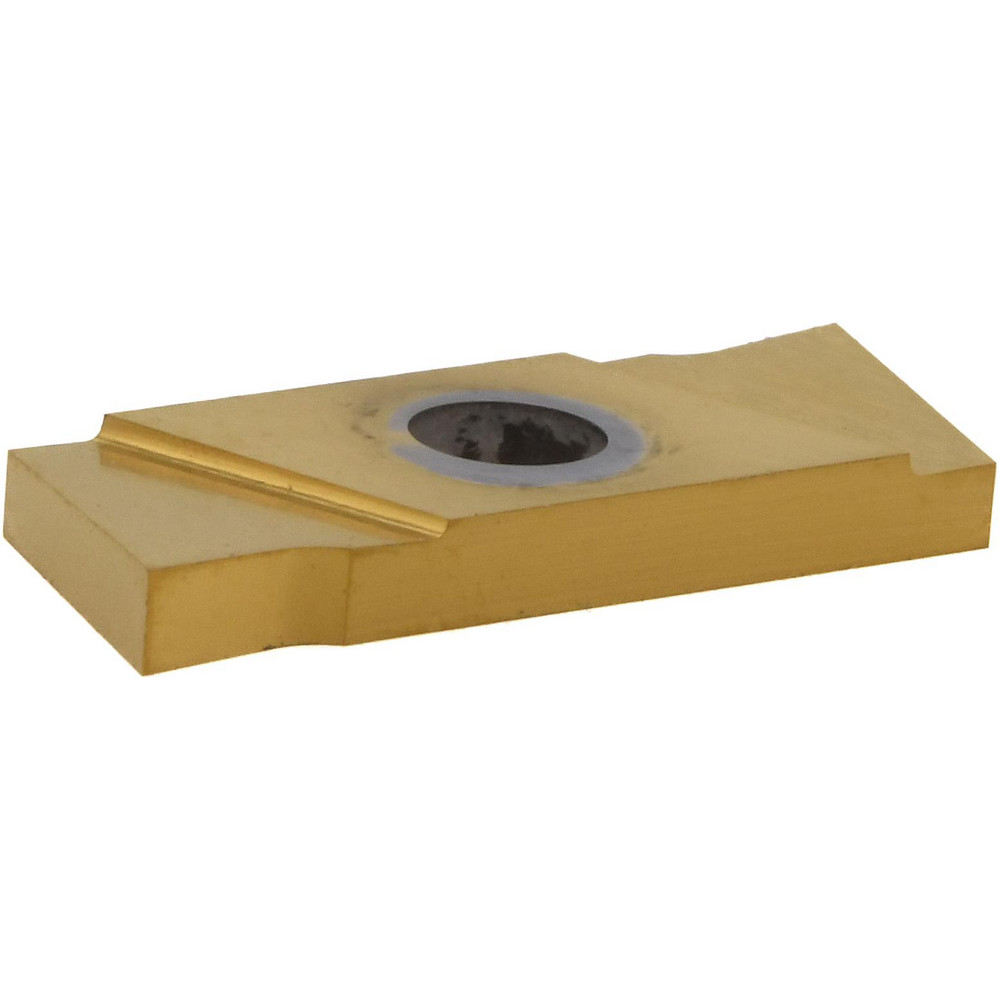

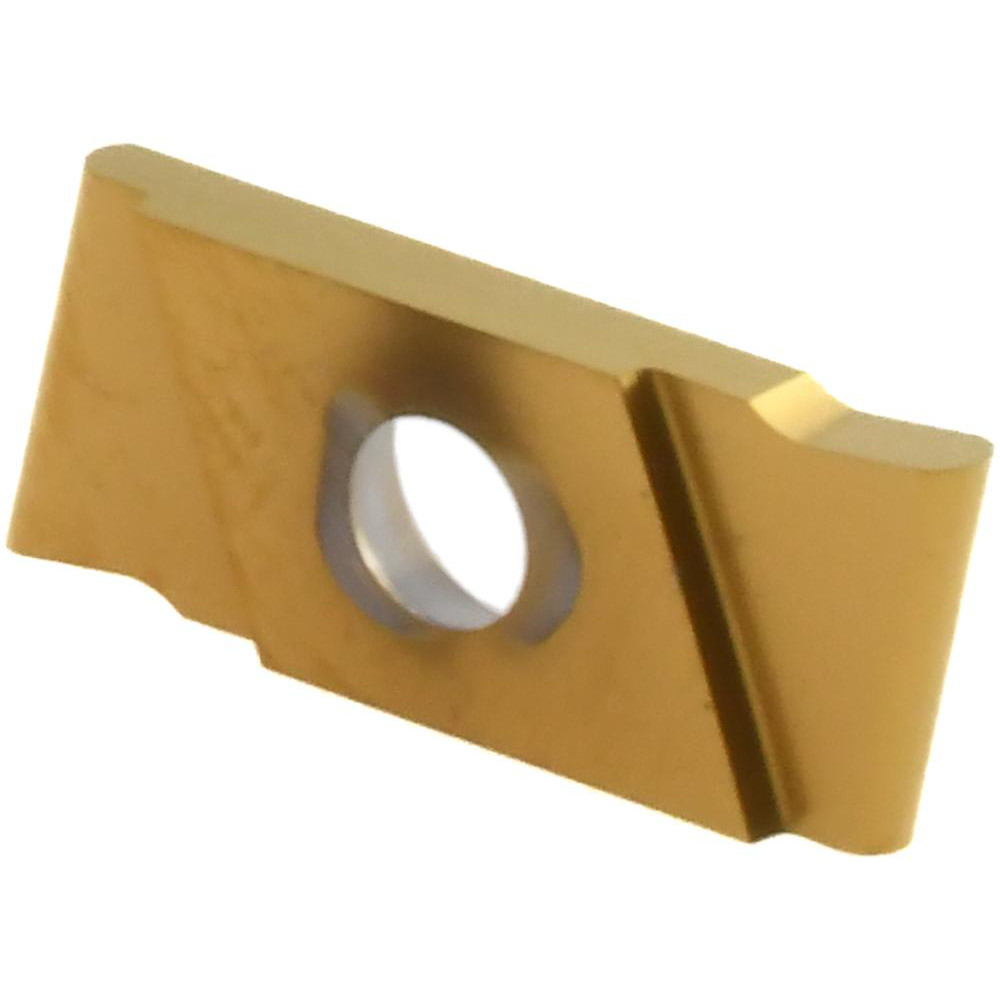

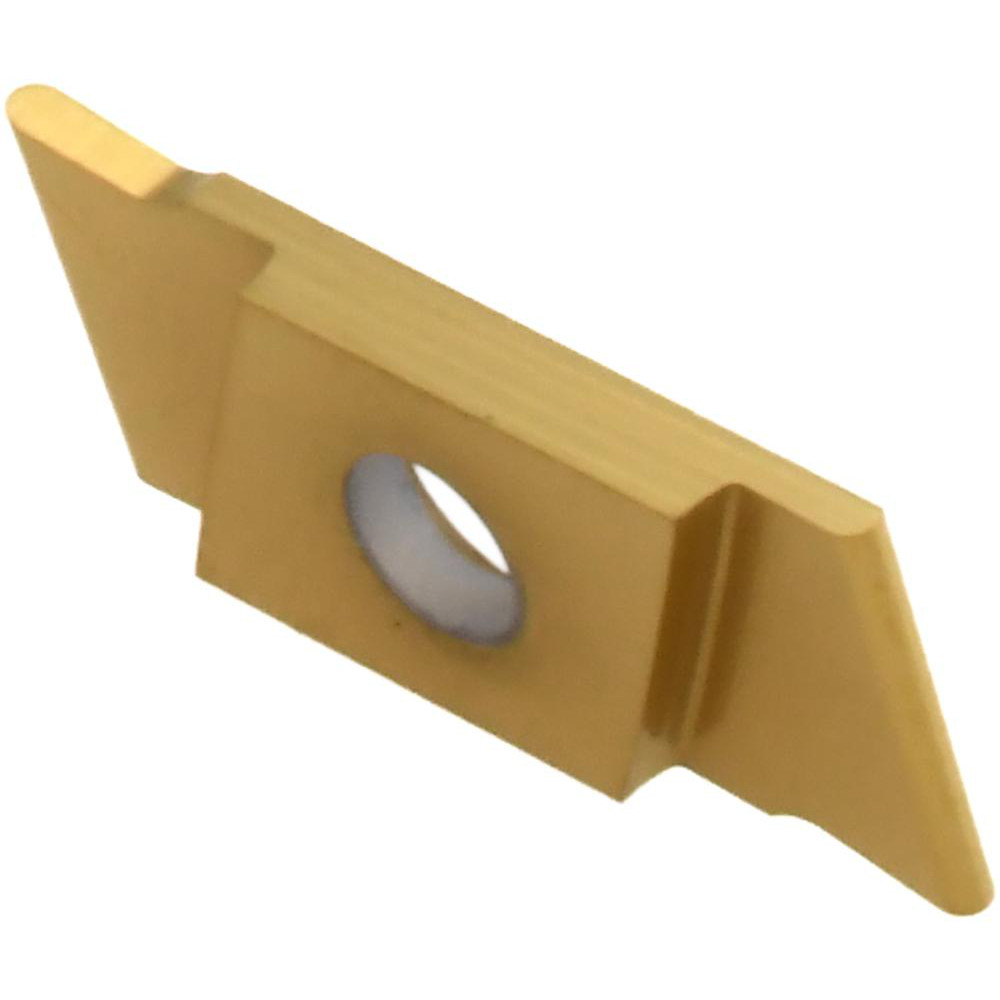

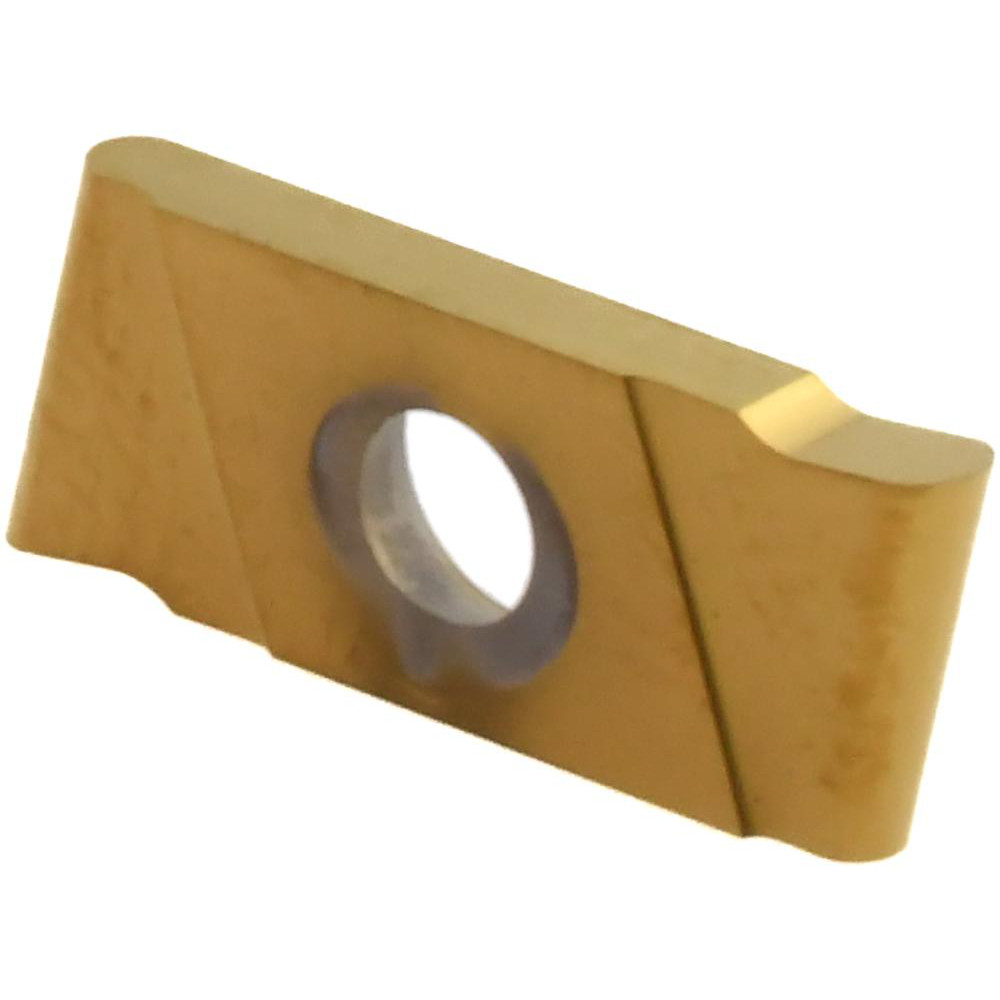

TiN Finish, Right Hand, 1.00 mm Cutting Width, 6.00 mm Max Depth, Series Nikcole Mini-Systems
| Insert Style | GIE |
|---|---|
| Insert Size Code | 7GR10 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Cutting Width (mm) | 1.00 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Insert Material | Carbide |
| Full Radius | Yes |
| Corner Radius (Decimal Inch) | 0.0190 |
| Corner Radius (mm) | 0.50 |
| Measurement Type | Metric |
| Insert Holding Method | Screw |
| Material Grade | C6 |
| Cutting Height (mm) | 7.00 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.2000 to 0.3000 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 7 |
| Multi-use Tool | No |
| Series | Nikcole Mini-Systems |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.6693 |
| Iso Code | ISO 9001 |
| Standards | ISO 9001 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GR |
| MSC/Manufacturer Number | GIE-7-GR-1.0 R |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.078 |
| Coating/Finish | TiN |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 78676855 |
