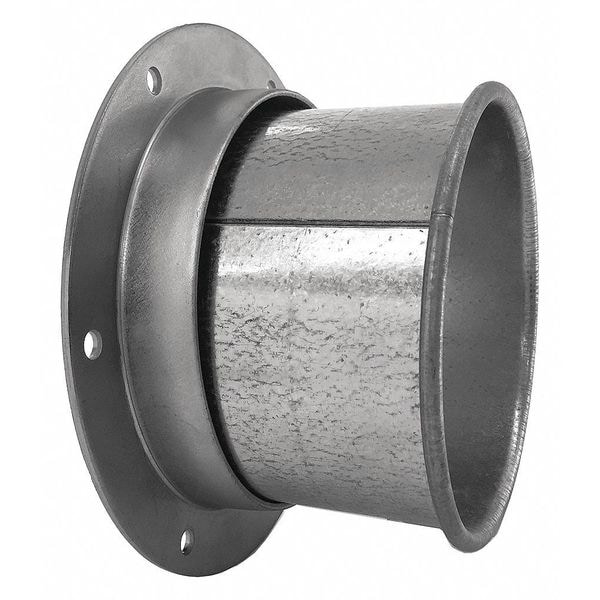

Angle Flange Adapter, Steel, 20 ga Thick
| Item | Angle Flange Adapter |
|---|---|
| Includes | none |
| Product Type | Adapter |
| Compatible with Series | QF |
| Finish | Galvanized |
| End Type | Quick-Fit |
| Material | Steel |
| Adapter Type | Angle Flange Adapter |
| Series | QF |
| Overall Length | 5 in |
| Compatible with Brand | Nordfab |
| Material Thickness | 20 ga |
| Overall Diameter | 20 in |
| Weight | 19.15 lb |
| Connection Type | Clamp Together |
| Shape | Round |
| Overall Width | 23-1/8 in |
| For Duct Shape | Round |
| For Duct Width | 20 in |
| Flange Outer Diameter | 23-1/8 in |
| Bolt Circle Diameter | 21-3/4 in |
| Maximum Airflow | 15,270 cfm |
| Inlet Diameter | 20 in |
| Inside Diameter | 20 in |
| Overall Depth | 5 in |
| Outlet Diameter | 20 in |
| Overall Height | 23-1/8 in |
| Minimum Pressure Rating | 2 in wc |
| Standards | Not Applicable |
| Maximum Pressure Rating | 42 in wc |
| Flange Inner Diameter | 20-1/8 in |
| Number of Holes on Flange | 12 |
| For Duct Height | 20 in |
| Seal Material | Nitrile |
| For Nominal Duct Diameter | 20 in |
| Gas Appliance Category | Not Applicable |
| Branch Diameter | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
