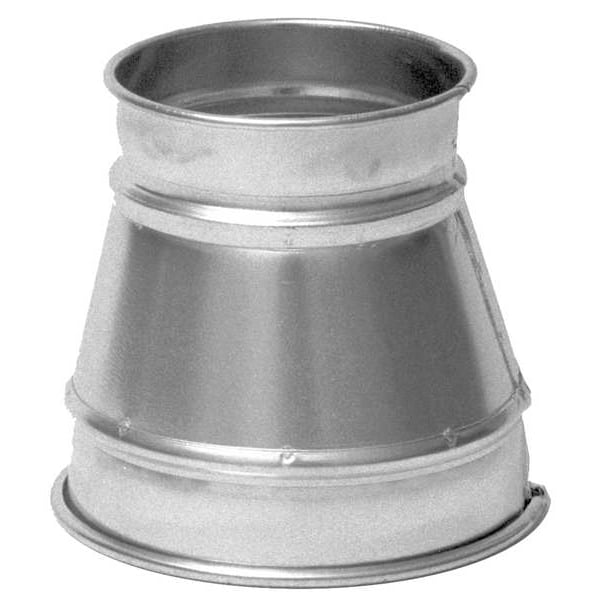

Duct Reducer, Stainless Steel, 20 ga Thick
| Item | Duct Reducer |
|---|---|
| Color | Silver |
| Product Type | Reducer |
| Material | Stainless Steel |
| End Type | Quick-Fit |
| Inlet Diameter | 14 in |
| Overall Length | 7 in |
| Material Grade | 304 |
| Outlet Diameter | 13 in |
| Series | QF |
| Connection Type | Clamp Together |
| Weight | 4.5 lb |
| Material Thickness | 20 ga |
| Maximum Temperature Rating | 1,100 deg F |
| Maximum Pressure Rating | 42 in wc |
| Seal Material | Nitrile |
| Gas Appliance Category | Not Applicable |
| For Nominal Duct Diameter | 13 in, 14 in |
| Standards | Not Applicable |
| Shape | Round |
| Inside Diameter | 14 in |
| Overall Height | 11 in |
| Overall Width | 14 in |
| Maximum Airflow | 7,485 cfm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
