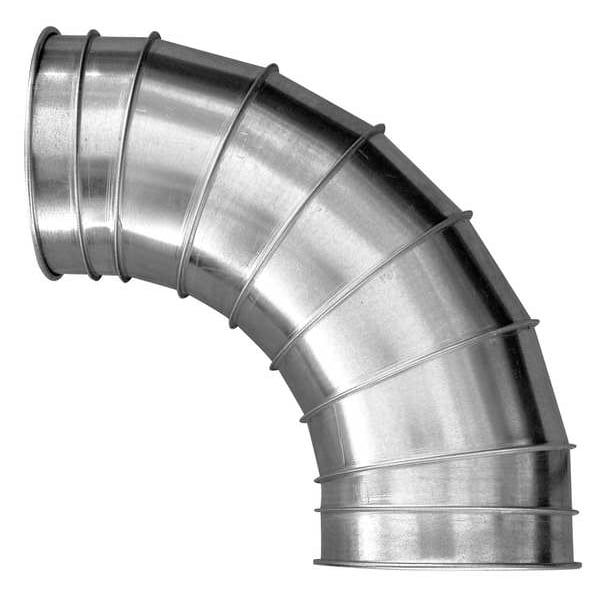

Elbow, 90 Degree, Steel, Round, 20 ga Thick
| Item | 90 Degree Elbow |
|---|---|
| Color | Silver |
| Inside Diameter | 24 in |
| Material | Steel |
| Shape | Elbow |
| Standards | Not Applicable |
| For Duct Width | 24 in |
| Centerline Radius | 1-1/2 in |
| Finish | Galvanized |
| Inlet Diameter | 24 in |
| Outlet Diameter | 24 in |
| Overall Height | 7-3/8 in |
| Maximum Pressure Rating | 42 in wc |
| Material Fabrication | Segmented |
| Overall Length | 50-1/4 in |
| Maximum Airflow | 21,995 cfm |
| Weight | 55.5 lb |
| Material Thickness | 20 ga |
| Seal Material | Nitrile |
| Compatible with Series | QF |
| Minimum Pressure Rating | 2 in wc |
| For Nominal Duct Diameter | 24 in |
| Compatible with Brand | Nordfab |
| Series | QF |
| Connection Type | Clamp Together |
| End Type | Rolled Edge |
| For Duct Shape | Round |
| For Duct Height | 24 in |
| Number of Pieces | 1 |
| Gas Appliance Category | Not Applicable |
| Product Type | Elbow |
| Angle | 90 deg |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
