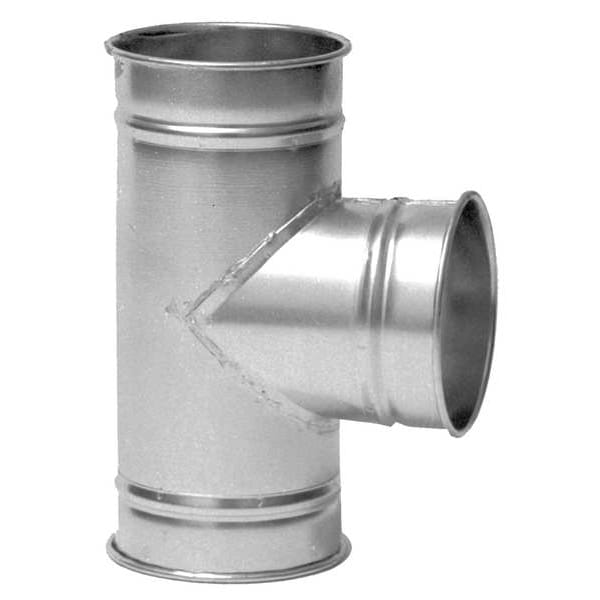

Round 16"dia 24"L 90 Degrees GSteel Tee Branch, 16 in Duct Dia, Galvanized Steel, 22 ga GA, 24" L
| Duct Fitting Duct Size | 16" |
|---|---|
| For Use With | QF Duct Work |
| Gauge | 22 ga |
| Height | 20 in |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 16 in |
| Length | 24 in |
| Coating | Galvanized |
| Outlet Diameter | 16 in |
| Pressure Rating | 2 in to 42 in WG |
| Item | 16"dia 24"L 90 Degrees GSteel Tee Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 16 in |
| Duct Fitting Material | Galvanized Steel |
| Duct Fitting Length | 24 in |
| Duct Fitting Item | Branch Tee |
| Material | Steel |
| Color | Silver |
| Series | QF |
| Finish | Galvanized |
| Type | Branch |
| Overall Width | 22 in |
| Overall Height | 24 in |
| Overall Length | 24 in |
| Maximum Pressure Rating | 42 in wc |
| Material Thickness | 20 ga |
| Minimum Pressure Rating | 2 in wc |
| Environment Type | Dusty |
| Maximum Airflow | Not Applicable |
| Maximum Temperature Rating | 390 deg F |
| End Type | Quick Fit |
| Connection Type | Clamp Together |
| Shape | Tee |
| Weight | 14 lb |
| Inside Diameter | 16 in |
| Product Type | Tee Branch |
| Angle | 90 deg |
| For Nominal Duct Diameter | 16 in |
| Compatible with Brand | Nordfab |
| For Media Type | Dust |
| Branch Diameter | 16 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
