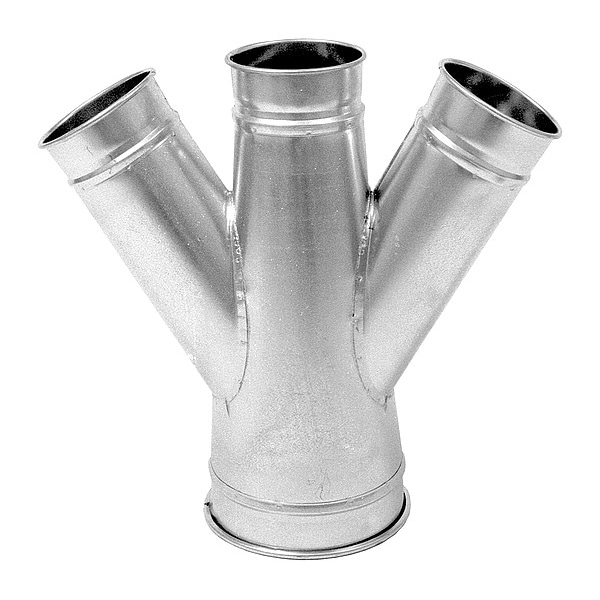

Round 16"dia 41"L 30 Degrees GSteel Double Branch, 16 in Duct Dia, Galvanized Steel, 20 ga GA
| Duct Fitting Duct Size | 16" |
|---|---|
| For Use With | QF Duct Work |
| Gauge | 20 ga |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 16 in |
| Length | 20 in |
| Coating | Galvanized |
| Outlet Diameter | 16 in |
| Pressure Rating | 2 in to 42 in WG |
| Item | 16"dia 41"L 30 Degrees GSteel Double Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 16 in |
| Duct Fitting Item | Double Branch |
| Duct Fitting Length | 20 in |
| Duct Fitting Material | Galvanized Steel |
| Material | Steel |
| Overall Height | 41 in |
| Series | QF |
| Overall Length | 41 in |
| Color | Silver |
| Type | Branch |
| Finish | Galvanized |
| Overall Width | 50 in |
| For Media Type | Dust |
| Product Type | Double Branch |
| Maximum Pressure Rating | 42 in wc |
| Weight | 19.6 lb |
| Maximum Airflow | Not Applicable |
| Inside Diameter | 16 in |
| Minimum Pressure Rating | 2 in wc |
| End Type | Quick Fit |
| Environment Type | Dusty |
| Maximum Temperature Rating | 390 deg F |
| Connection Type | Clamp Together |
| Material Thickness | 20 ga |
| For Nominal Duct Diameter | 16 in |
| Compatible with Brand | Nordfab |
| Shape | Double Branch |
| Angle | 30 deg |
| Branch Diameter | 16 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
