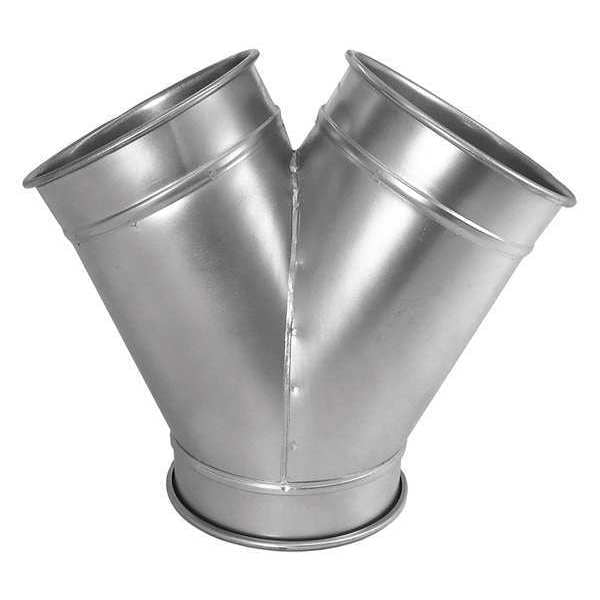

Round 4"dia 11 1/2"L 60 Degrees SS Wye Branch, 4 in Duct Dia, 304 Stainless Steel, 22 ga GA, 4 in H
| Duct Fitting Duct Size | 4" |
|---|---|
| Width | 10-1/2 in |
| For Use With | Industrial Dust Collection |
| Gauge | 22 ga |
| Height | 4 in |
| Construction Material | 304 Stainless Steel |
| Inlet Diameter | 4 in |
| Length | 11-1/2 in |
| Outlet Diameter | 4 in |
| Item | 4"dia 11 1/2"L 60 Degrees SS Wye Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 4 in |
| Duct Fitting Item | Wye Branch |
| Duct Fitting Material | Stainless Steel |
| Duct Fitting Length | 11-1/2 in |
| Material | Stainless Steel |
| Overall Length | 11-1/2 in |
| Color | Silver |
| Overall Width | 11 in |
| Series | QF |
| Overall Height | 8 in |
| For Nominal Duct Diameter | 4 in |
| Inside Diameter | 4 in |
| End Type | Quick Fit |
| Compatible with Brand | Nordfab |
| Environment Type | Dusty |
| Connection Type | Clamp Together |
| Weight | 1.75 lb |
| Maximum Airflow | Not Applicable |
| Product Type | Wye Branch |
| Maximum Temperature Rating | 1,100 deg F |
| Angle | 60 deg |
| Minimum Pressure Rating | 2 in wc |
| Material Grade | 304 |
| For Media Type | Dust |
| Maximum Pressure Rating | 42 in wc |
| Shape | Wye |
| Material Thickness | 22 ga |
| Branch Diameter | 4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
