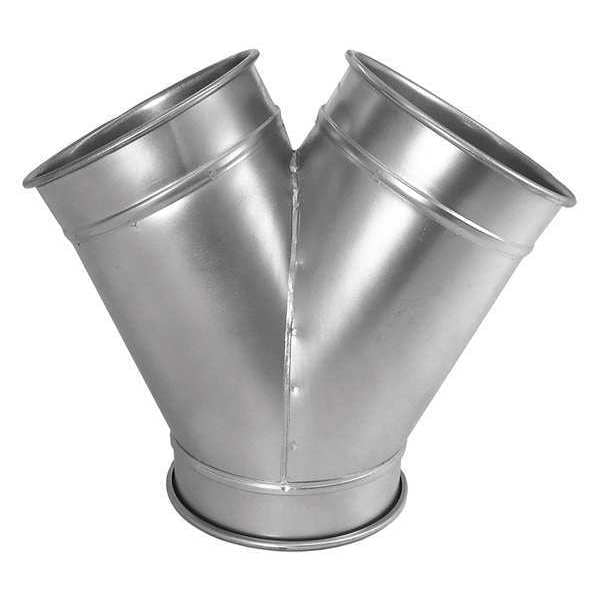

Round 7"dia 14 1/2"L 60 Degrees GSteel Wye Branch, 7 in Duct Dia, Galvanized Steel, 22 ga GA
| Duct Fitting Duct Size | 7" |
|---|---|
| Width | 17-1/2 in |
| For Use With | Industrial Dust Collection |
| Gauge | 22 ga |
| Height | 7 in |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 7 in |
| Length | 14-1/2 in |
| Coating | Galvanized |
| Outlet Diameter | 7 in |
| Item | 7"dia 14 1/2"L 60 Degrees GSteel Wye Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 7 in |
| Duct Fitting Material | Galvanized Steel |
| Duct Fitting Length | 14-1/2 in |
| Duct Fitting Item | Wye Branch |
| Material | Steel |
| Series | QF |
| Overall Width | 16 in |
| Color | Silver |
| Overall Length | 14-1/2 in |
| Finish | Galvanized |
| Overall Height | 11 in |
| Weight | 3.25 lb |
| Maximum Pressure Rating | 42 in wc |
| Environment Type | Dusty |
| Maximum Airflow | Not Applicable |
| End Type | Quick Fit |
| Product Type | Wye Branch |
| For Media Type | Dust |
| Minimum Pressure Rating | 2 in wc |
| Shape | Wye |
| Inside Diameter | 7 in |
| Maximum Temperature Rating | 390 deg F |
| For Nominal Duct Diameter | 7 in |
| Angle | 60 deg |
| Compatible with Brand | Nordfab |
| Material Thickness | 22 ga |
| Connection Type | Clamp Together |
| Branch Diameter | 7 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
