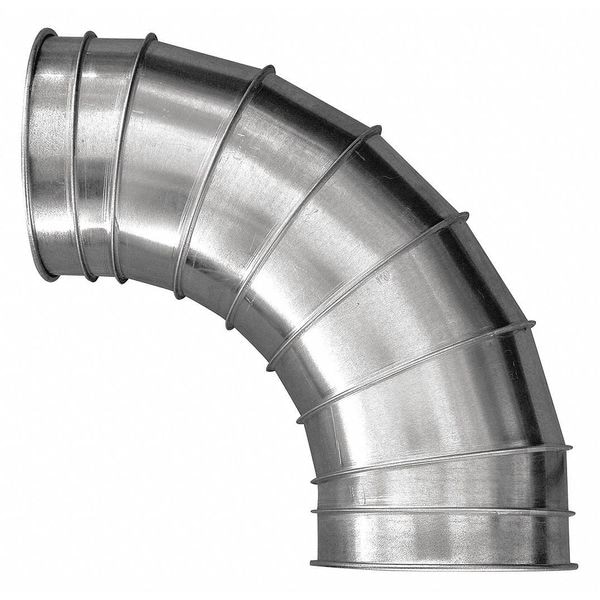

Escuadra codo redondo de 90 grados, 10 pulgadas de diámetro de conducto, acero inoxidable 304, calibre 22, 22 1/4 pulgadas de ancho, 22-1/4 pulgadas de largo, 10 pulgadas de altura.
| Duct Fitting Duct Size | 10" |
|---|---|
| Width | 22-1/4 in |
| For Use With | Industrial Dust Collection |
| Gauge | 22 ga |
| Height | 10 in |
| Construction Material | 304 Stainless Steel |
| Inlet Diameter | 10 in |
| Length | 22-1/4 in |
| Outlet Diameter | 10 in |
| Item | 90 Degree Elbow |
| Damper Shape | Round |
| Duct Fitting Diameter | 10 in |
| Duct Fitting Length | 22-1/4 in |
| Duct Fitting Item | 90 Degree Elbow |
| Duct Fitting Material | Stainless Steel |
| Material | Stainless Steel |
| Type | 90 Degrees |
| Series | QF |
| Overall Length | 22-1/4 in |
| Overall Width | 22-1/4 in |
| Overall Height | 10 in |
| Color | Silver |
| Minimum Pressure Rating | 2 in wc |
| Material Thickness | 22 ga |
| For Duct Height | 10 in |
| Maximum Pressure Rating | 42 in wc |
| Centerline Radius | 1-1/2 in |
| For Duct Shape | Round |
| For Duct Width | 10 in |
| Weight | 9 lb |
| Product Type | Elbow |
| Shape | Elbow |
| Inside Diameter | 10 in |
| Compatible with Brand | Nordfab |
| Connection Type | Clamp Together |
| Material Grade | 304 |
| Number of Pieces | 1 |
| End Type | Rolled Edge |
| For Nominal Duct Diameter | 10 in |
| Maximum Airflow | Not Applicable |
| Angle | 90 deg |
| Package Quantity | 1 |
