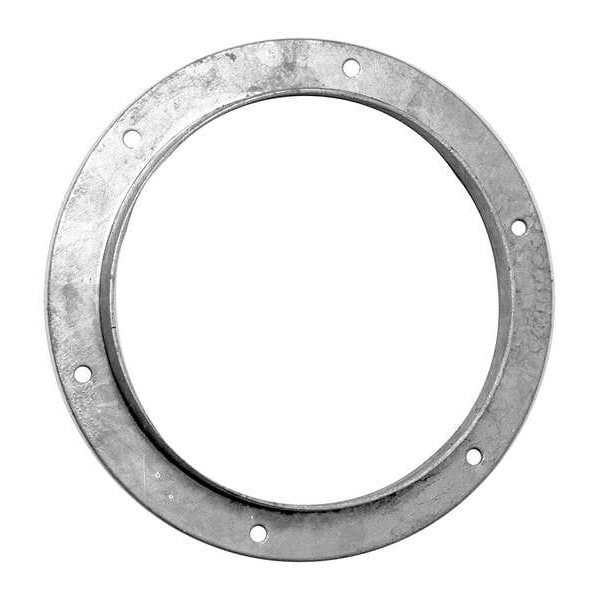

Adaptador de brida de ángulo redondo, diámetro de conducto de 16 pulgadas, acero galvanizado, calibre 20 GA, 1-1/2" de largo, 1-1/2" de alto.
| Duct Fitting Duct Size | 16" |
|---|---|
| For Use With | QF Duct Work |
| Gauge | 20 ga |
| Height | 1-1/2 in |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 16-1/8 in |
| Length | 1-1/2 in |
| Coating | Galvanized |
| Outlet Diameter | 16 in |
| Pressure Rating | 2 in to 42 in WG |
| Item | Angle Flange Adapter |
| Damper Shape | Round |
| Duct Fitting Diameter | 16 in |
| Duct Fitting Length | 1-1/2 in |
| Duct Fitting Item | Angle Flange |
| Duct Fitting Material | Galvanized Steel |
| Duct Size | 16 in |
| Standards | ANSI |
| Material | Steel |
| Finish | Galvanized |
| Overall Width | 16 in |
| Overall Length | 1-1/2 in |
| Type | Angle Flange |
| Overall Height | 1-1/2 in |
| Minimum Pressure Rating | 2 in wc |
| Shape | Straight |
| Inside Diameter | 1/2 in |
| Flange Inner Diameter | 16-1/8 in |
| Bolt Circle Diameter | 18 in |
| Overall Diameter | 16 in |
| Weight | 8 lb |
| Product Type | Angle Flange Adapter |
| Adapter Type | Angle Flange Adapter |
| End Type | Plain |
| For Duct Height | 16 in |
| For Nominal Duct Diameter | 16 in |
| Material Thickness | 20 ga |
| Maximum Pressure Rating | 42 in wc |
| For Duct Shape | Round |
| For Duct Width | 16 in |
| Flange Outer Diameter | 19-1/8 in |
| Number of Holes on Flange | 8 |
| Branch Diameter | Not Applicable |
| Package Quantity | 1 |
