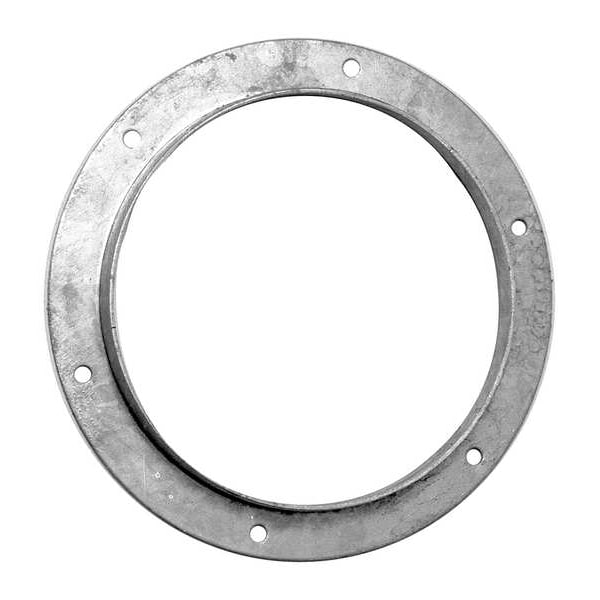

Round Angle Flange Adapter, 4 in Duct Dia, Galvanized Steel, 22 ga GA, 61/64" L, 1" H
| Duct Fitting Duct Size | 4" |
|---|---|
| For Use With | QF Duct Work |
| Gauge | 22 ga |
| Height | 1 in |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 4 in |
| Length | 61/64 in |
| Coating | Galvanized |
| Outlet Diameter | 4 in |
| Pressure Rating | 2 in to 42 in WG |
| Item | Angle Flange Adapter |
| Damper Shape | Round |
| Duct Fitting Diameter | 4 in |
| Duct Fitting Material | Galvanized Steel |
| Duct Fitting Length | 61/64 in |
| Duct Fitting Item | Angle Flange |
| Duct Size | 4 in |
| Material | Steel |
| Standards | ANSI |
| Overall Height | 1 in |
| Finish | Galvanized |
| Overall Length | 1 in |
| Overall Width | 4 in |
| Type | Angle Flange |
| Adapter Type | Angle Flange Adapter |
| Overall Diameter | 4 in |
| Minimum Pressure Rating | 2 in wc |
| For Nominal Duct Diameter | 4 in |
| Bolt Circle Diameter | 5-1/4 in |
| Number of Holes on Flange | 6 |
| For Duct Shape | Round |
| Shape | Straight |
| For Duct Width | 4 in |
| Weight | 0.9 lb |
| Flange Inner Diameter | 4 in |
| Material Thickness | 22 ga |
| Maximum Pressure Rating | 42 in wc |
| Product Type | Angle Flange Adapter |
| End Type | Plain |
| For Duct Height | 4 in |
| Inside Diameter | 1/4 in |
| Flange Outer Diameter | 6 in |
| Branch Diameter | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
