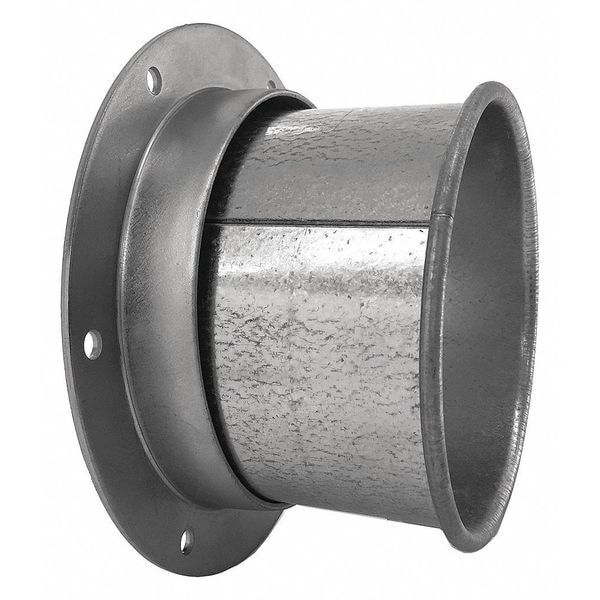

Adaptador de brida de ángulo redondo, diámetro del conducto de 9 pulgadas, acero inoxidable 304, calibre 22, 11 3/4 pulgadas de ancho, 3-1/2 pulgadas de largo.
| Duct Fitting Duct Size | 9" |
|---|---|
| Width | 11-3/4 in |
| For Use With | Industrial Dust Collection |
| Gauge | 22 ga |
| Height | 11-3/4 in |
| Construction Material | 304 Stainless Steel |
| Inlet Diameter | 9 in |
| Length | 3-1/2 in |
| Outlet Diameter | 9 in |
| Item | Angle Flange Adapter |
| Damper Shape | Round |
| Duct Fitting Diameter | 9 in |
| Duct Fitting Material | Stainless Steel |
| Duct Fitting Length | 3-1/2 in |
| Duct Fitting Item | Angle Flange Adapter |
| Duct Size | 9 in |
| Material | Stainless Steel |
| Overall Length | 3-1/2 in |
| Overall Width | 9 in |
| Overall Height | 9 in |
| Product Type | Angle Flange Adapter |
| Inside Diameter | 1/2 in |
| For Duct Height | 9 in |
| Connection Type | Clamp Together |
| For Nominal Duct Diameter | 9 in |
| Flange Inner Diameter | 9-1/8 in |
| Material Grade | 304 |
| For Duct Width | 9 in |
| End Type | Quick-Fit |
| Overall Diameter | 9 in |
| Number of Holes on Flange | 6 |
| Flange Outer Diameter | 11-5/8 in |
| Adapter Type | Angle Flange Adapter |
| Bolt Circle Diameter | 10-5/8 in |
| For Duct Shape | Round |
| Shape | Straight |
| Maximum Pressure Rating | 42 in wc |
| Weight | 3.25 lb |
| Material Thickness | 22 ga |
| Minimum Pressure Rating | 2 in wc |
| Branch Diameter | Not Applicable |
| Package Quantity | 1 |
