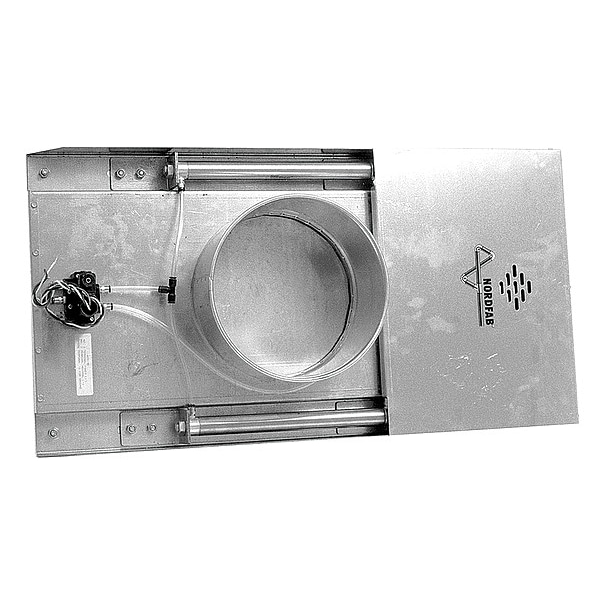

Round Blast Gate, Galvanized Steel, 22 GA, 20" W, 9 in L, 38-1/2" H
| Width | 20 in |
|---|---|
| Gauge | 22 |
| Height | 38-1/2 in |
| Construction Material | Galvanized Steel |
| Length | 9 in |
| Coating | Galvanized |
| Voltage | 120 V |
| Item | Blast Gate |
| Damper Shape | Round |
| Duct Size | 12 in |
| Duct Fitting Material | Galvanized Steel |
| Finish | Galvanized |
| Overall Length | 9 in |
| Series | QF |
| Overall Width | 20 in |
| Blade Material | Galvanized Steel |
| Color | Silver |
| Product Type | Pneumatic Blast Gate |
| Compatible with Brand | Nordfab |
| Body Material Thickness | 22 ga |
| Number of Air Cylinders | 2 |
| Minimum Operating Pressure | 75 psi |
| Nameplate Voltage | 120V AC |
| Shape | Rectangular |
| For Media Type | Dust |
| For Nominal Duct Diameter | 12 in |
| Minimum Pressure Rating | 75 psi |
| Weight | 44 lb |
| Overall Depth | 38-1/2 in |
| End Type | Quick Fit |
| Inside Diameter | 12 in |
| Body Material | Steel |
| Maximum Pressure Rating | 42 in wc |
| Maximum Temperature Rating | 250 deg F |
| Connection Type | Clamp Together |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
