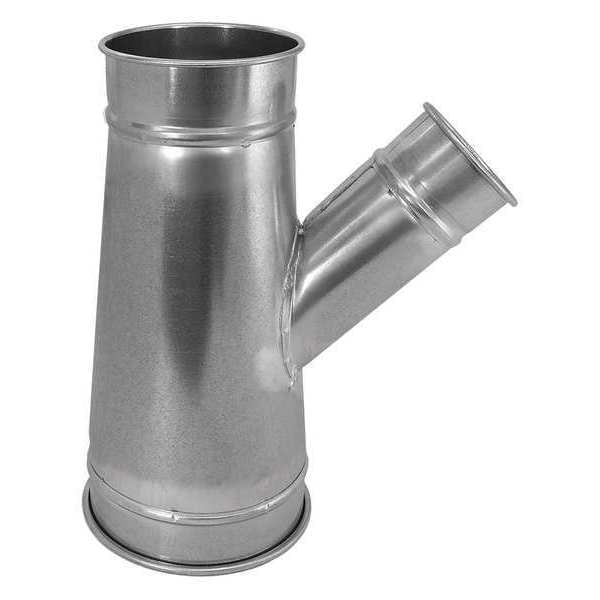

Rama Redonda, 7 pulgadas de diámetro de conducto, acero inoxidable 304, calibre 22, 17 1/2 pulgadas de ancho, 23 pulgadas de largo, 7 pulgadas de altura.
| Duct Fitting Duct Size | 7" |
|---|---|
| Width | 17-1/2 in |
| For Use With | Industrial Dust Collection |
| Gauge | 22 ga |
| Height | 7 in |
| Construction Material | 304 Stainless Steel |
| Inlet Diameter | 7 in |
| Length | 23 in |
| Outlet Diameter | 7 in |
| Item | 7"dia 23"L 30 Degrees SS Wye Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 7 in |
| Duct Fitting Material | Stainless Steel |
| Duct Fitting Length | 23 in |
| Duct Fitting Item | Branch |
| Material | Stainless Steel |
| Overall Length | 23 in |
| Series | QF |
| Overall Height | 23 in |
| Color | Silver |
| Overall Width | 17 in |
| Weight | 5 lb |
| Compatible with Series | Branch |
| Connection Type | Clamp Together |
| Shape | Wye |
| Product Type | Wye Branch |
| Maximum Temperature Rating | 1,100 deg F |
| Compatible with Brand | Nordfab |
| For Media Type | Dust |
| Angle | 30 deg |
| Maximum Airflow | Not Applicable |
| For Nominal Duct Diameter | 7 in |
| End Type | Quick Fit |
| Material Thickness | 22 ga |
| Environment Type | Dusty |
| Material Grade | 304 |
| Minimum Pressure Rating | 2 in wc |
| Inside Diameter | 7 in |
| Maximum Pressure Rating | 42 in wc |
| Branch Diameter | 7 in |
| Package Quantity | 1 |
