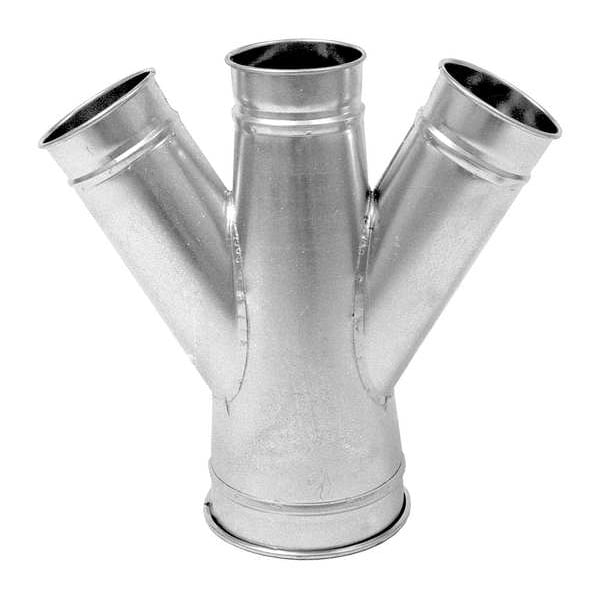

Rama doble redonda, diámetro de conducto de 4 pulgadas, acero galvanizado, calibre 22, longitud de 8 pulgadas.
| Duct Fitting Duct Size | 4" |
|---|---|
| For Use With | QF Duct Work |
| Gauge | 22 ga |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 4 in |
| Length | 8 in |
| Coating | Galvanized |
| Outlet Diameter | 4 in |
| Pressure Rating | 2 in to 42 in WG |
| Item | 4"dia 17"L 30 Degrees GSteel Double Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 4 in |
| Duct Fitting Item | Double Branch |
| Duct Fitting Material | Galvanized Steel |
| Duct Fitting Length | 8 in |
| Material | Steel |
| Finish | Galvanized |
| Color | Silver |
| Overall Height | 17 in |
| Overall Length | 17 in |
| Overall Width | 17 in |
| Series | QF |
| Type | Branch |
| Environment Type | Dusty |
| End Type | Quick Fit |
| Weight | 3.5 lb |
| Shape | Double Branch |
| Material Thickness | 22 ga |
| Inside Diameter | 4 in |
| Maximum Pressure Rating | 42 in wc |
| Maximum Temperature Rating | 390 deg F |
| For Nominal Duct Diameter | 4 in |
| Angle | 30 deg |
| Minimum Pressure Rating | 2 in wc |
| Product Type | Double Branch |
| For Media Type | Dust |
| Compatible with Brand | Nordfab |
| Maximum Airflow | Not Applicable |
| Connection Type | Clamp Together |
| Branch Diameter | 4 in |
| Package Quantity | 1 |
