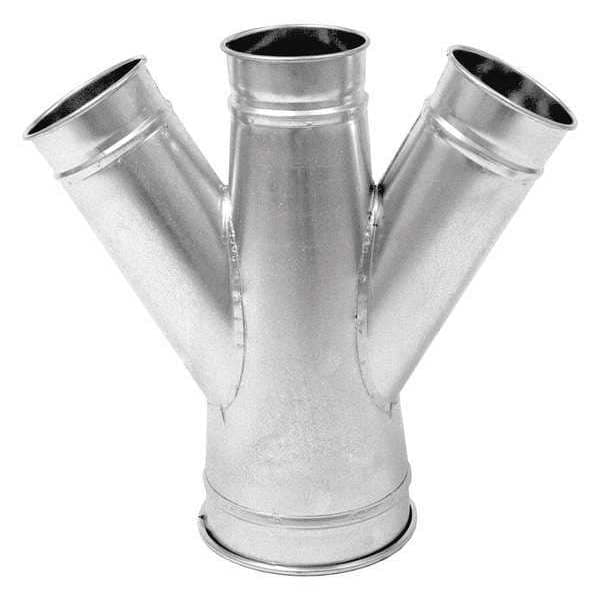

Ronda Doble Rama, 9 pulgadas de diámetro de conducto, Acero Galvanizado, Calibre 22, 22 1/2 pulgadas de ancho, 27 pulgadas de largo, 9 pulgadas de alto.
| Duct Fitting Duct Size | 9" |
|---|---|
| Width | 22-1/2 in |
| For Use With | Industrial Dust Collection |
| Gauge | 22 ga |
| Height | 9 in |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 9 in |
| Length | 27 in |
| Coating | Galvanized |
| Outlet Diameter | 9 in |
| Item | 9"dia 27"L 30 Degrees GSteel Double Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 9 in |
| Duct Fitting Length | 27 in |
| Duct Fitting Material | Galvanized Steel |
| Duct Fitting Item | Double Branch |
| Material | Steel |
| Overall Length | 27 in |
| Series | QF |
| Finish | Galvanized |
| Color | Silver |
| Overall Width | 31 in |
| Overall Height | 27 in |
| Environment Type | Dusty |
| Maximum Temperature Rating | 390 deg F |
| Product Type | Double Branch |
| Maximum Airflow | Not Applicable |
| Minimum Pressure Rating | 2 in wc |
| For Nominal Duct Diameter | 9 in |
| For Media Type | Dust |
| Inside Diameter | 9 in |
| Weight | 8.5 lb |
| Compatible with Brand | Nordfab |
| End Type | Quick Fit |
| Shape | Double Branch |
| Connection Type | Clamp Together |
| Maximum Pressure Rating | 42 in wc |
| Angle | 30 deg |
| Material Thickness | 22 ga |
| Branch Diameter | 9 in |
| Package Quantity | 1 |
