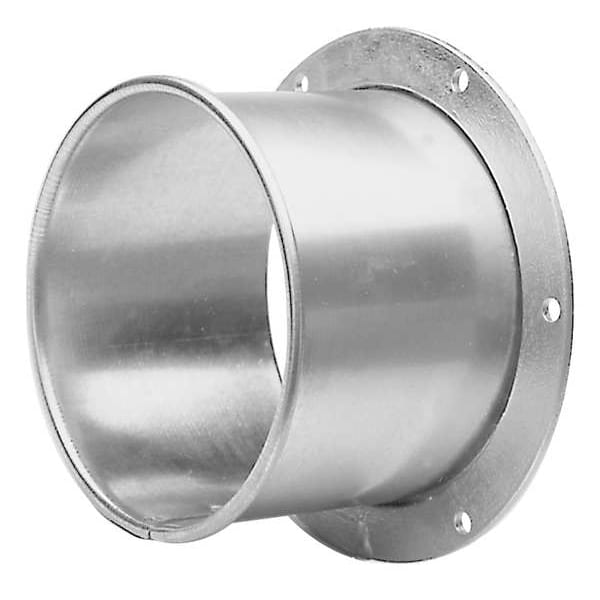

Adaptador de brida redonda, diámetro de conducto de 14 pulgadas, acero galvanizado, calibre 20, longitud de 5 pulgadas.
| Duct Fitting Duct Size | 14" |
|---|---|
| For Use With | QF Duct Work |
| Gauge | 22 ga |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 14 in |
| Length | 5 in |
| Coating | Galvanized |
| Outlet Diameter | 14 in |
| Pressure Rating | 2 in to 42 in WG |
| Item | Flange Adapter |
| Damper Shape | Round |
| Duct Fitting Diameter | 14 in |
| Duct Fitting Material | Galvanized Steel |
| Duct Fitting Item | Flange Adapter |
| Duct Fitting Length | 5 in |
| Material | Steel |
| Duct Size | 14 in |
| Type | Adapter |
| Overall Length | 5 in |
| Finish | Galvanized |
| Overall Width | 14 in |
| Overall Height | 14 in |
| Overall Diameter | 14 in |
| End Type | Quick-Fit |
| For Duct Width | 14 in |
| For Nominal Duct Diameter | 14 in |
| Material Thickness | 20 ga |
| Weight | 7.7 lb |
| Product Type | Angle Flange Adapter |
| For Duct Shape | Round |
| Connection Type | Clamp Together |
| Maximum Pressure Rating | 42 in wc |
| Shape | Straight |
| Adapter Type | Angle Flange Adapter |
| Minimum Pressure Rating | 2 in wc |
| Flange Outer Diameter | 17-1/8 in |
| Bolt Circle Diameter | 16 in |
| Inside Diameter | 1/2 in |
| Number of Holes on Flange | 8 |
| Flange Inner Diameter | 14-1/8 in |
| For Duct Height | 14 in |
| Maximum Airflow | 7,000 cfm |
| Branch Diameter | Not Applicable |
| Package Quantity | 1 |
