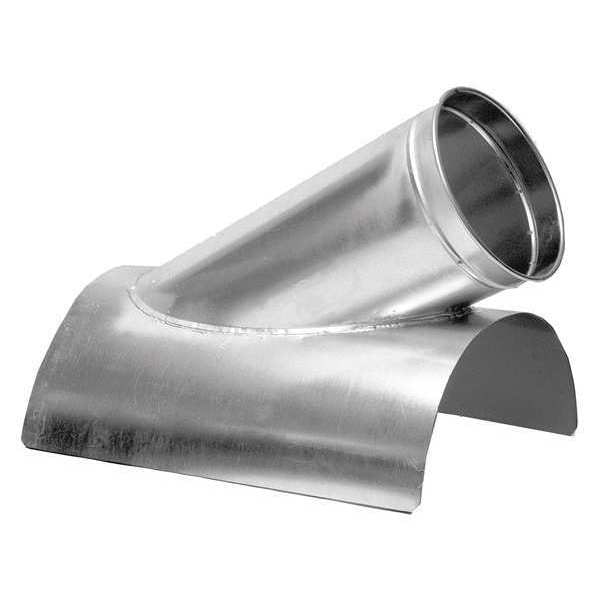

Incurvado, 10 pulgadas x 6 pulgadas de diámetro de conducto, Acero inoxidable 304, calibre 22, 10 pulgadas de ancho, 12 pulgadas de largo, 20 pulgadas de alto.
| Duct Fitting Duct Size | 10" x 6" |
|---|---|
| Width | 10 in |
| For Use With | Industrial Dust Collection |
| Gauge | 22 ga |
| Height | 20 in |
| Construction Material | 304 Stainless Steel |
| Inlet Diameter | 10 in |
| Length | 12 in |
| Outlet Diameter | 10 in |
| Item | 10"dia 12"L 30 Degrees SS In-Cut Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 10 in x 6 in |
| Duct Fitting Item | In-Cut |
| Duct Fitting Length | 12 in |
| Duct Fitting Material | Stainless Steel |
| Material | Stainless Steel |
| Color | Silver |
| Series | QF |
| Overall Length | 12 in |
| Overall Width | 10 in |
| Overall Height | 18 in |
| Material Thickness | 22 ga |
| Connection Type | Clamp Together |
| Shape | Wye |
| For Nominal Duct Diameter | 10 in |
| Angle | 30 deg |
| Maximum Airflow | Not Applicable |
| Maximum Temperature Rating | 1,100 deg F |
| For Media Type | Dust |
| Environment Type | Dusty |
| Maximum Pressure Rating | 42 in wc |
| Weight | 2.8 lb |
| Inside Diameter | 10 in |
| Compatible with Brand | Nordfab |
| End Type | Quick Fit |
| Minimum Pressure Rating | 2 in wc |
| Product Type | In Cut |
| Material Grade | 304 |
| Branch Diameter | 10 in |
| Package Quantity | 1 |
