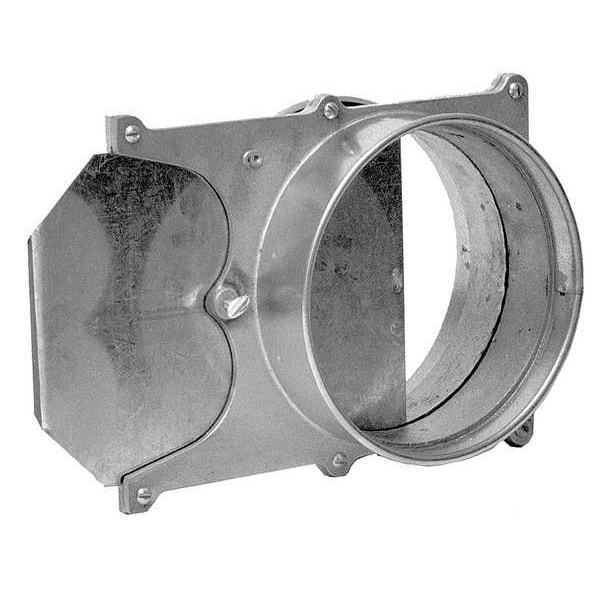

Blastgate manual redondo de aluminio fundido, calibre 20, 18 pulgadas de ancho, 11 1/4 pulgadas de largo, 28-1/2 pulgadas de altura.
| Width | 18 in |
|---|---|
| Gauge | 20 |
| Height | 28-1/2 in |
| Construction Material | Cast Aluminum |
| Inlet Diameter | 15-63/64 in |
| Length | 11-1/4 in |
| Coating | Galvanized |
| Outlet Diameter | 16-1/16 in |
| Item | Blast Gate |
| Damper Shape | Round |
| Duct Size | 16 in |
| Duct Fitting Material | Cast Aluminum |
| Overall Width | 18 in |
| Blade Material | Galvanized Steel |
| Overall Length | 11-1/4 in |
| Color | Silver |
| Series | QF |
| Product Type | Manual Blast Gate |
| End Type | Quick Fit |
| Inside Diameter | 16 in |
| For Media Type | Dust |
| Connection Type | Clamp Together |
| Compatible with Brand | Nordfab |
| Body Material Fabrication | Cast |
| Maximum Temperature Rating | 390 deg F |
| Shape | Rectangular |
| Overall Depth | 11-1/4 in |
| For Nominal Duct Diameter | 16 in |
| Maximum Pressure Rating | 42 in wc |
| Body Material Thickness | 20 ga |
| Body Material | Aluminum |
| Weight | 21.2 lb |
| Package Quantity | 1 |
