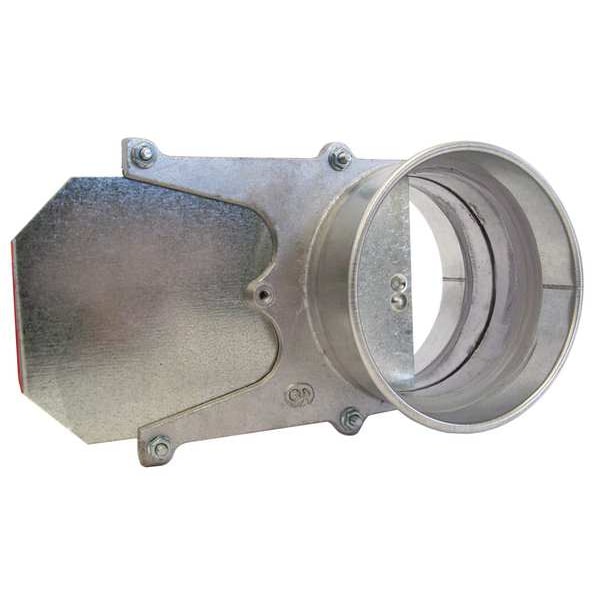

Clapotera manual redonda, fundida en aluminio, calibre 20, 9 3/8 pulgadas de ancho, 5 1/2 pulgadas de largo, 12 pulgadas de altura.
| Width | 9-3/8 in |
|---|---|
| Gauge | 20 |
| Height | 12 in |
| Construction Material | Cast Aluminum |
| Inlet Diameter | 8 in |
| Length | 5-1/2 in |
| Coating | Galvanized |
| Outlet Diameter | 8 in |
| Item | Blast Gate |
| Damper Shape | Round |
| Duct Size | 8 in |
| Duct Fitting Material | Cast Aluminum |
| Overall Width | 9-1/4 in |
| Overall Length | 5-1/2 in |
| Series | QF |
| Blade Material | Galvanized Steel |
| Color | Silver |
| Product Type | Manual Blast Gate |
| Shape | Rectangular |
| Maximum Pressure Rating | 42 in wc |
| Body Material | Aluminum |
| For Nominal Duct Diameter | 8 in |
| Overall Depth | 5-1/2 in |
| Compatible with Brand | Nordfab |
| Body Material Thickness | 22 ga |
| Inside Diameter | 8 in |
| End Type | Quick Fit |
| Weight | 5.5 lb |
| Body Material Fabrication | Cast |
| For Media Type | Dust |
| Maximum Temperature Rating | 390 deg F |
| Connection Type | Clamp Together |
| Package Quantity | 1 |
