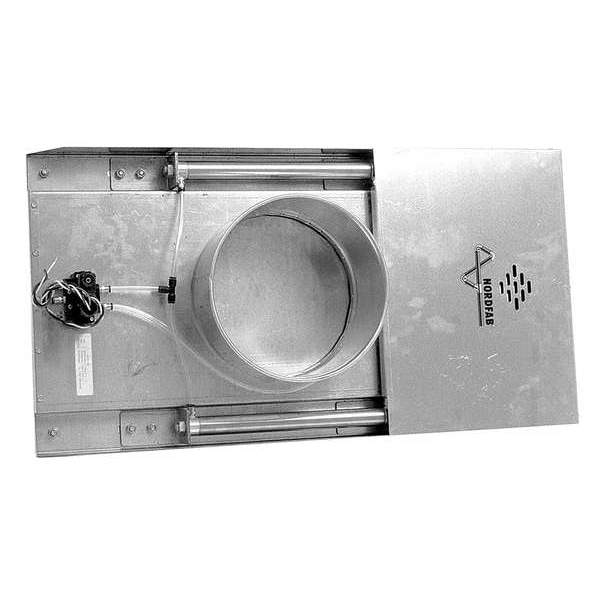

NFES Auto Blastgate de forma redonda, fabricado en acero galvanizado calibre 20, con dimensiones de 23.30 pulgadas de ancho, 12 pulgadas de largo y 41 pulgadas de altura.
| Width | 23.3 in |
|---|---|
| Gauge | 20 |
| Height | 41 in |
| Construction Material | Galvanized Steel |
| Length | 12 in |
| Coating | Galvanized |
| Voltage | 120 V |
| Item | Blast Gate |
| Damper Shape | Round |
| Duct Size | 14 in |
| Duct Fitting Material | Galvanized Steel |
| Overall Width | 23-1/4 in |
| Series | QF |
| Blade Material | Galvanized Steel |
| Overall Length | 12 in |
| Color | Silver |
| Finish | Galvanized |
| Product Type | Pneumatic Blast Gate |
| End Type | Quick Fit |
| Nameplate Voltage | 120V AC |
| Body Material Thickness | 20 ga |
| Overall Depth | 41 in |
| For Nominal Duct Diameter | 14 in |
| Shape | Rectangular |
| Maximum Pressure Rating | 42 in wc |
| Number of Air Cylinders | 2 |
| Compatible with Brand | Nordfab |
| Inside Diameter | 14 in |
| Weight | 50 lb |
| Maximum Temperature Rating | 250 deg F |
| For Media Type | Dust |
| Minimum Pressure Rating | 75 psi |
| Connection Type | Clamp Together |
| Minimum Operating Pressure | 75 psi |
| Body Material | Steel |
| Package Quantity | 1 |
