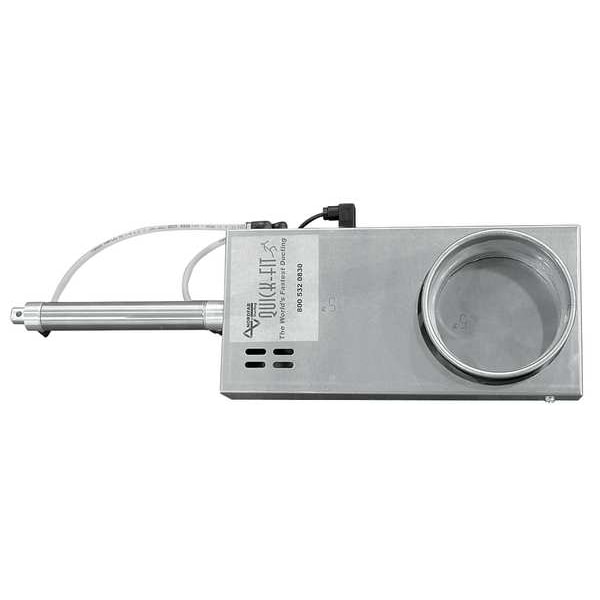

Round SD Auto Blastgate, Acero galvanizado, calibre 22, 5 3/8 pulgadas de ancho, 5 1/2 pulgadas de largo.
| Width | 5-3/8 in |
|---|---|
| Gauge | 22 |
| Construction Material | Galvanized Steel |
| Length | 5-1/2 in |
| Coating | Galvanized |
| Item | Blast Gate |
| Damper Shape | Round |
| Duct Size | 4 in |
| Duct Fitting Material | Galvanized Steel |
| Blade Material | Galvanized Steel |
| Color | Silver |
| Finish | Galvanized |
| Overall Length | 5-1/2 in |
| Series | QF |
| Overall Width | 20-3/8 in |
| Product Type | Pneumatic Blast Gate |
| Maximum Temperature Rating | 150 deg F |
| Weight | 9.9 lb |
| Maximum Pressure Rating | 42 in wc |
| Overall Depth | 10-1/4 in |
| Minimum Pressure Rating | 75 psi |
| Inside Diameter | 4 in |
| Minimum Operating Pressure | 75 psi |
| Body Material Thickness | 20 ga |
| Shape | Rectangular |
| Body Material | Steel |
| Nameplate Voltage | 120V AC |
| Number of Air Cylinders | 1 |
| Connection Type | Clamp Together |
| For Nominal Duct Diameter | 4 in |
| For Media Type | Dust |
| End Type | Quick Fit |
| Compatible with Brand | Nordfab |
| Package Quantity | 1 |
