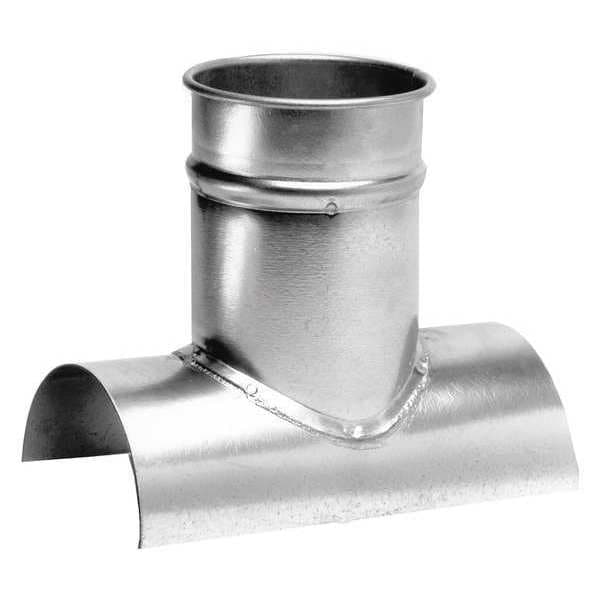

Tap in redondo, diámetro de conducto de 6 pulgadas x 6 pulgadas, acero inoxidable 304, calibre 22, ancho de 6 pulgadas, longitud de 10 pulgadas, altura de 10 pulgadas.
| Duct Fitting Duct Size | 6" x 6" |
|---|---|
| Width | 6 in |
| For Use With | Industrial Dust Collection |
| Gauge | 22 ga |
| Height | 10 in |
| Construction Material | 304 Stainless Steel |
| Inlet Diameter | 6 in |
| Length | 10 in |
| Outlet Diameter | 6 in |
| Item | 6"dia 10"L 90 Degrees SS Tap-In Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 6 in x 6 in |
| Duct Fitting Item | Tap In |
| Duct Fitting Material | Stainless Steel |
| Duct Fitting Length | 10 in |
| Material | Stainless Steel |
| Series | QF |
| Color | Silver |
| Overall Width | 6 in |
| Overall Length | 10 in |
| Overall Height | 12 in |
| Material Grade | 304 |
| Maximum Airflow | Not Applicable |
| Maximum Pressure Rating | 42 in wc |
| Inside Diameter | 6 in |
| Angle | 90 deg |
| Product Type | Tap In |
| Compatible with Brand | Nordfab |
| For Nominal Duct Diameter | 6 in |
| For Media Type | Dust |
| Connection Type | Clamp Together |
| Weight | 1.1 lb |
| Environment Type | Dusty |
| Maximum Temperature Rating | 1,100 deg F |
| Shape | Tee |
| Material Thickness | 22 ga |
| End Type | Quick Fit |
| Minimum Pressure Rating | 2 in wc |
| Branch Diameter | 6 in |
| Package Quantity | 1 |
