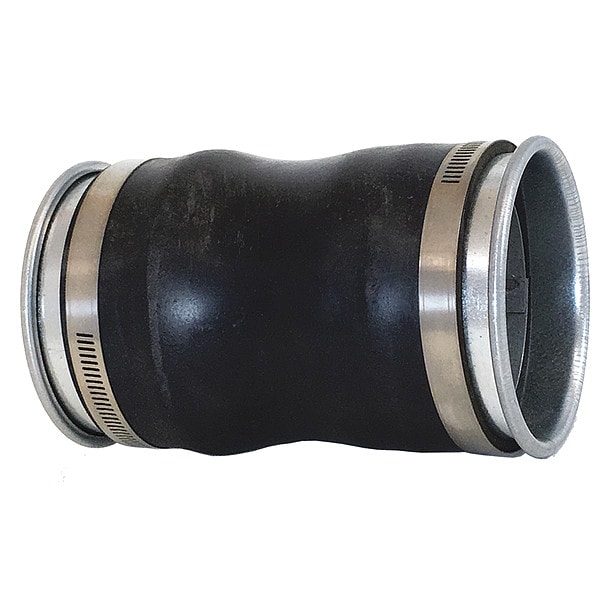

Aislador de vibración redondo, para ducto de 10 pulgadas de diámetro, de acero galvanizado calibre 22, de 10 pulgadas de ancho, 6-1/2 pulgadas de largo y 10 pulgadas de altura.
| Duct Fitting Duct Size | 10" |
|---|---|
| Width | 10 in |
| For Use With | QF Duct Work |
| Gauge | 22 ga |
| Height | 10 in |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 10 in |
| Length | 6-1/2 in |
| Coating | Galvanized |
| Outlet Diameter | 10 in |
| Pressure Rating | 2 in to 42 in WG |
| Item | Vibration Isolator |
| Damper Shape | Round |
| Duct Fitting Diameter | 10 in |
| Duct Fitting Item | Vibration Isolator |
| Duct Fitting Length | 6-1/2 in |
| Duct Fitting Material | Galvanized Steel |
| Material | Steel |
| Finish | Galvanized |
| Color | Silver, Black |
| Overall Width | 10 in |
| Overall Height | 10 in |
| Overall Length | 6-1/2 in |
| Type | Vibration Isolator |
| Application | Commercial |
| Product Type | Quick-Fit Vibration Isolator |
| Material Thickness | 22 ga |
| Minimum Pressure Rating | 2 in wc |
| Duct Compatibility | Round |
| Maximum Airflow | Not Applicable |
| Connection Type | Clamp Together |
| Maximum Temperature Rating | 194 deg F |
| Weight | 4.8 lb |
| Maximum Pressure Rating | 42 in wc |
| For Duct Shape | Round |
| Shape | Straight |
| Fabric Material | Neoprene |
| Inside Diameter | 10 in |
| For Nominal Duct Diameter | 10 in |
| Package Quantity | 1 |
