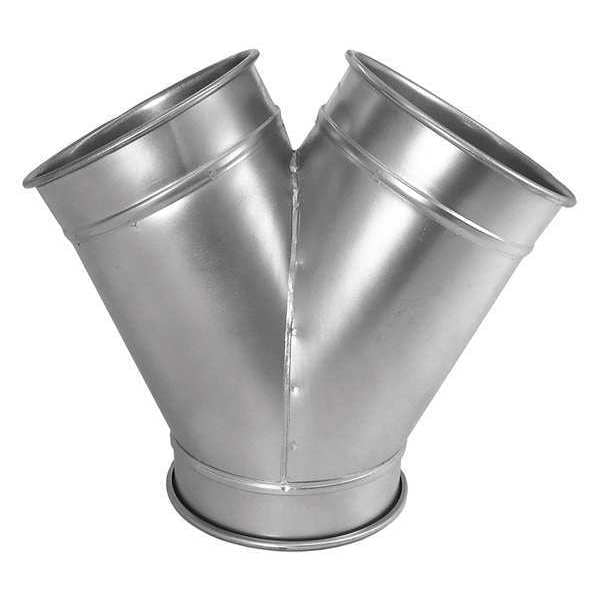

Rama redonda en Y, 14 pulgadas de diámetro de ducto, acero inoxidable 304, calibre 20, 35 pulgadas de ancho, 21-1/2 pulgadas de largo, 14 pulgadas de altura.
| Duct Fitting Duct Size | 14" |
|---|---|
| Width | 35 in |
| For Use With | Industrial Dust Collection |
| Gauge | 20 ga |
| Height | 14 in |
| Construction Material | 304 Stainless Steel |
| Inlet Diameter | 14 in |
| Length | 21-1/2 in |
| Outlet Diameter | 14 in |
| Item | 14"dia 21 1/2"L 60 Degrees SS Wye Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 14 in |
| Duct Fitting Material | Stainless Steel |
| Duct Fitting Item | Wye Branch |
| Duct Fitting Length | 21-1/2 in |
| Material | Stainless Steel |
| Series | QF |
| Overall Height | 18 in |
| Color | Silver |
| Overall Width | 28 in |
| Overall Length | 21-1/2 in |
| Material Thickness | 20 ga |
| Maximum Pressure Rating | 42 in wc |
| End Type | Quick Fit |
| Minimum Pressure Rating | 2 in wc |
| Environment Type | Dusty |
| Angle | 60 deg |
| Product Type | Wye Branch |
| Compatible with Brand | Nordfab |
| Maximum Temperature Rating | 1,100 deg F |
| Shape | Wye |
| Material Grade | 304 |
| Maximum Airflow | Not Applicable |
| Connection Type | Clamp Together |
| Inside Diameter | 14 in |
| For Media Type | Dust |
| Weight | 14 lb |
| For Nominal Duct Diameter | 14 in |
| Branch Diameter | 14 in |
| Package Quantity | 1 |
