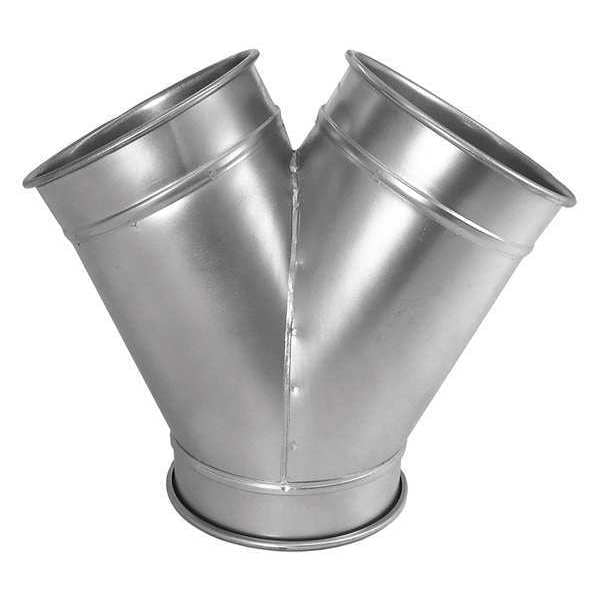

Rama Wye Redonda, Diámetro del ducto de 9 pulgadas, Acero inoxidable 304, Calibre 22, Ancho de 22 1/2 pulgadas, Largo de 16-1/2 pulgadas, Altura de 9 pulgadas.
| Duct Fitting Duct Size | 9" |
|---|---|
| Width | 22-1/2 in |
| For Use With | Industrial Dust Collection |
| Gauge | 22 ga |
| Height | 9 in |
| Construction Material | 304 Stainless Steel |
| Inlet Diameter | 9 in |
| Length | 16-1/2 in |
| Outlet Diameter | 9 in |
| Item | 9"dia 16 1/2"L 60 Degrees SS Wye Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 9 in |
| Duct Fitting Item | Wye Branch |
| Duct Fitting Material | Stainless Steel |
| Duct Fitting Length | 16-1/2 in |
| Material | Stainless Steel |
| Overall Width | 20 in |
| Color | Silver |
| Overall Height | 13 in |
| Overall Length | 16-1/2 in |
| Series | QF |
| Shape | Wye |
| Weight | 5.25 lb |
| Maximum Temperature Rating | 1,100 deg F |
| Maximum Airflow | Not Applicable |
| Inside Diameter | 9 in |
| Maximum Pressure Rating | 42 in wc |
| For Media Type | Dust |
| Angle | 60 deg |
| For Nominal Duct Diameter | 9 in |
| Material Grade | 304 |
| Compatible with Brand | Nordfab |
| Product Type | Wye Branch |
| Environment Type | Dusty |
| Minimum Pressure Rating | 2 in wc |
| Material Thickness | 22 ga |
| End Type | Quick Fit |
| Connection Type | Clamp Together |
| Branch Diameter | 9 in |
| Package Quantity | 1 |
