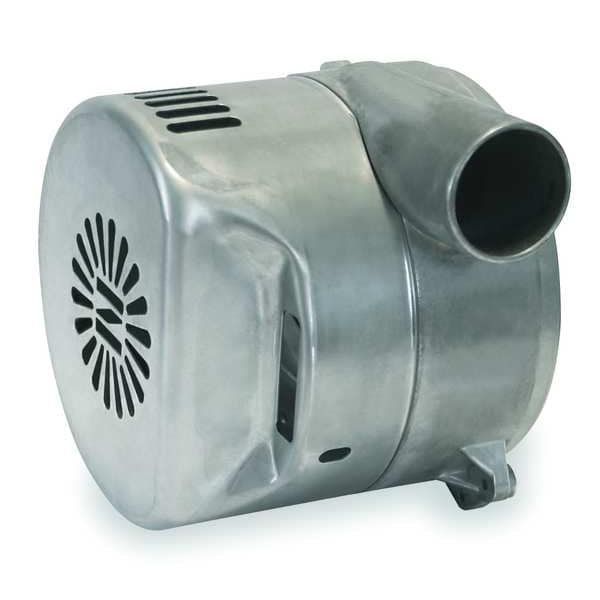

Blower, Tangential, 5.7 In, 86.5 CFM, 240V
| Item | Brushless Blower |
|---|---|
| Inlet Dia. | 1-3/4 in |
| Phase | Single |
| Motor Enclosure Design | Open |
| Blower Stages | 2 |
| Max. Amps | 4.5 |
| Vacuum Rating | 45 in wc |
| Height | 5-11/16 in |
| Voltage | 230V AC |
| Blower Type | Tangential Discharge |
| Body Dia. | 5 11/16 in |
| Motor Thermal Protection | Auto |
| Hz | 60/50 Hz |
| Motor Mounting Position | All Angle |
| CFM | 86 |
| Ins. Class | B |
| Watts | 400 |
| Construction | Aluminum |
| Control | Electronic |
| Max. Ambient Temp. | 50 deg C |
| Discharge Dia. | 1-3/4 in |
| Speed | Adjustable |
| Standards | C22.2 77-95, C22.2 NO. 100-04, CAN/CSA-E60730-1:02, UL 1004, UL 211, UL 507, UL 60730-1A |
| Motor Bearings | Ball |
| Motor Application | Washdown |
| Motor Sub Application | Direct Drive Fan/Blower |
| Voltage @ 50Hz | 230V AC |
| Manufacturers Warranty Length | 1 yr |
| Full Load Amps | 4.5 A |
| Length Less Shaft | 6-1/8 in |
| Full Load Amps @ 50Hz | 4.5 A |
| Overall Length | 7 in |
| Voltage Compatibility | 115/230V AC, 120/240V AC, 230V AC, 240V AC |
| Bolt Circle Dia. | 6 1/2 in |
| Control Type | Electronic |
| Frame | Non-Standard |
| Motor Design | Three-Phase |
| Motor Mounting Type | Not Applicable |
| Usable @ 208V | Not Usable at 208V |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
