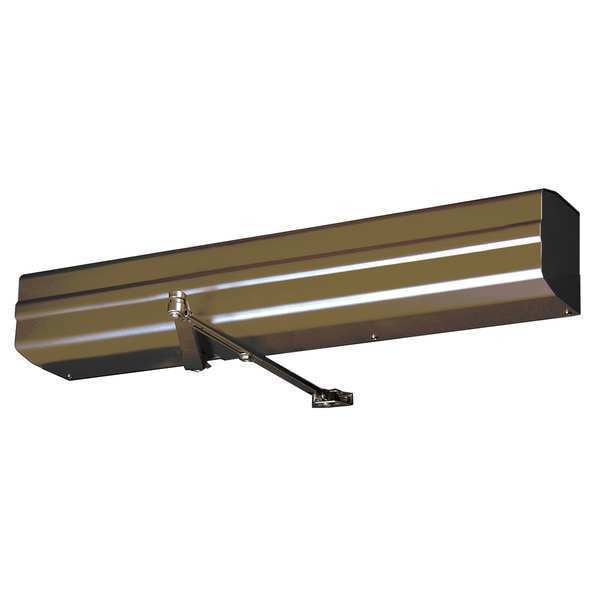

Automatic, Hydraulic, Norton 5721, Door Operator, Heavy Duty Interior and Exterior, Dark Brown
| Item | Door Operator |
|---|---|
| Closer Mounting Style | Regular |
| Closer Performance | Heavy Duty |
| Closer Series | Norton 5721 |
| Closer Type | Non Hold Open |
| Color | Dark Brown |
| Finish | Dark Bronze Painted |
| Hand Orientation | Non-Handed |
| Housing Depth | 4-5/8 in |
| Housing Height | 5-1/4 in |
| Housing Length | 29 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Automatic |
| Material | Aluminum, Steel |
| Spring Size | Adjustable 1 to 6 |
| Arm Material | Aluminum/Steel |
| Exterior Door Width | 48 in |
| Ligature Resistant | No |
| Max. Door Opening | 180 Degrees |
| Projection from Wall | 4-5/8 in |
| Arm Type | Track |
| Interior Door Width | 54 in |
| Includes | (2) Radio Frequency Wall Switches |
| Standards | ANSI/BHMA A156.19, ANSI/BHMA A156.4 Grade 1, UL and cUL Listed |
| ADA Compliant | Yes |
| Category Type | Regular Arm |
| Power Source | Electrical |
| Door Handing | Non-Handed |
| Type | Interior or Exterior Push Side |
| Series | Norton 5721 |
| Hand | Non-Handed |
| Mounting Style | Push Side |
| Interior/Exterior Use | Interior, Exterior |
| Fire Rating | Not Rated |
| Spring Type | Adjustable |
| Spring Size - Minimum | 1 |
| Door Opening - Minimum | Not Applicable |
| Interior Door Width - Maximum | 54 in |
| Compatible Series | Not Applicable |
| Length Between Mounting Holes | 3/8 in, 7/8 in, 5-7/8 in, 7-9/16 in, 12-15/16 in |
| Exterior Door Width - Maximum | 48 in |
| Compatible Brand | Norton |
| Height Between Mounting Holes | 1/2 in |
| Spring Size - Maximum | 6 |
| Stop Type | Spring |
| Exterior Door Width - Minimum | Not Applicable |
| Performance Grade | 1 |
| Door Opening - Maximum | 180 deg |
| Door Weight - Minimum | 198 lb |
| ANSI/BHMA Finish | Painted |
| Ligature-Resistant | Not Ligature-Resistant |
| Operator Cycles | 10,000,000 |
| Door Weight - Maximum | 254 lb |
| Projection | 4-5/8 in |
| Compatible Manufacturer Model Number | Not Applicable |
| Interior Door Width - Minimum | Not Applicable |
| Power Level | Low Energy |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
