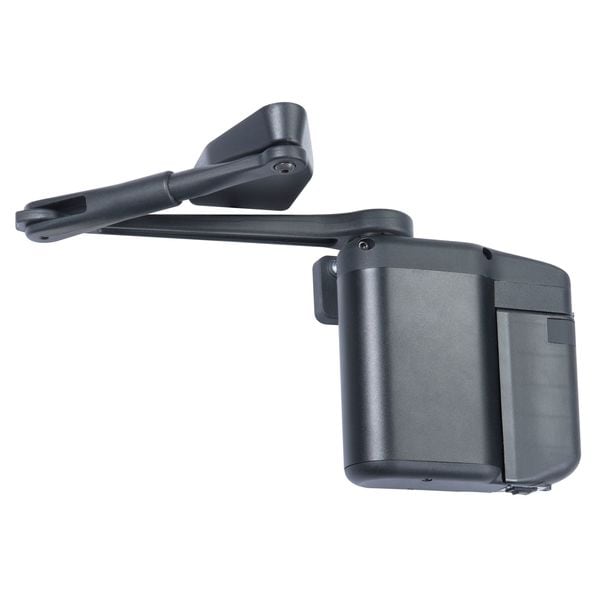

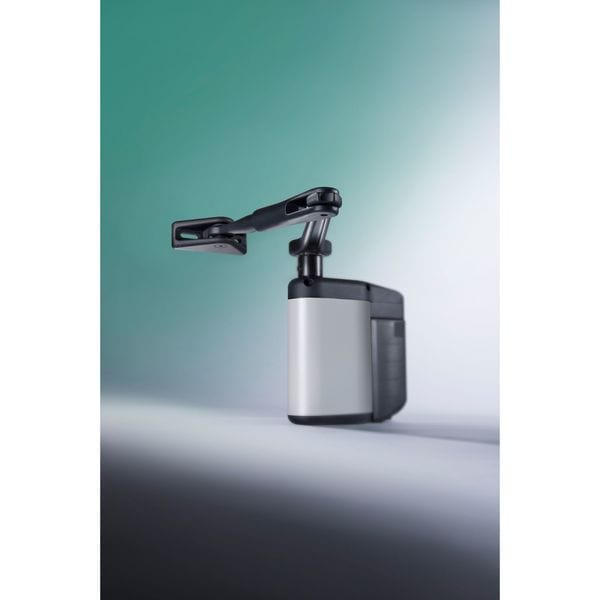

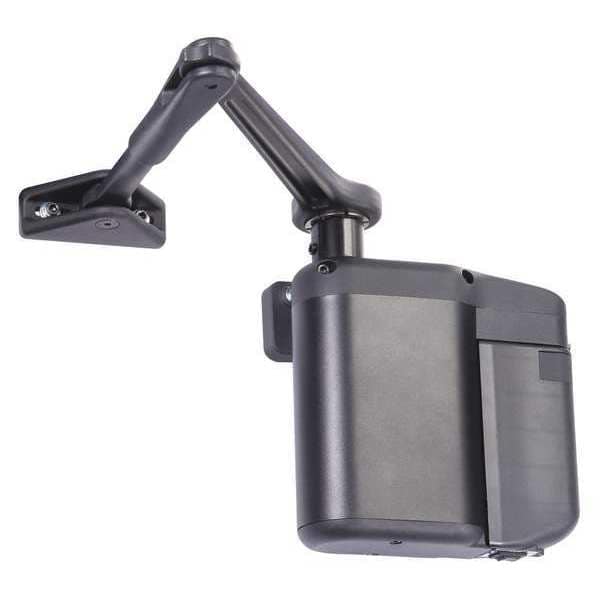

Automatic, Hydraulic, Norton 5800, Low Energy Power Operator, Heavy Duty Interior and Exterior
| Item | Low Energy Power Operator |
|---|---|
| Closer Mounting Style | Push and Pull |
| Closer Performance | Heavy Duty |
| Closer Series | Norton 5800 |
| Closer Type | Electronically Controlled |
| Color | Black |
| Finish | Black and Aluminum |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-1/2 in |
| Housing Height | 9 in |
| Housing Length | 8 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Automatic |
| Material | Steel |
| Spring Size | Adjustable 1 to 7 |
| Max. Door Opening | 95 Degrees |

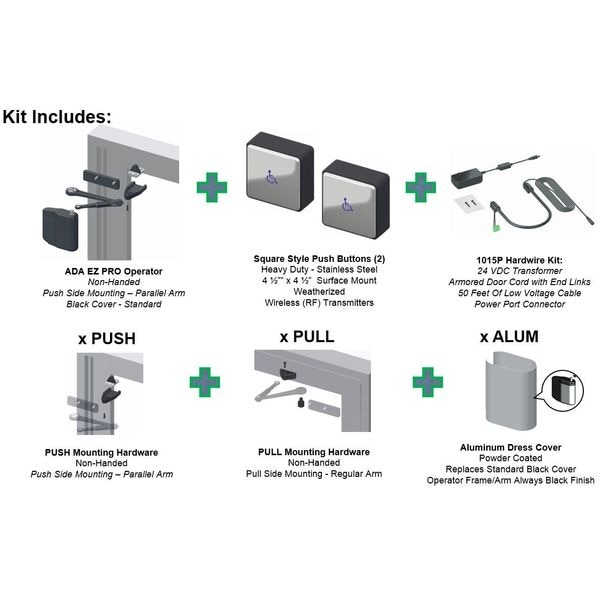

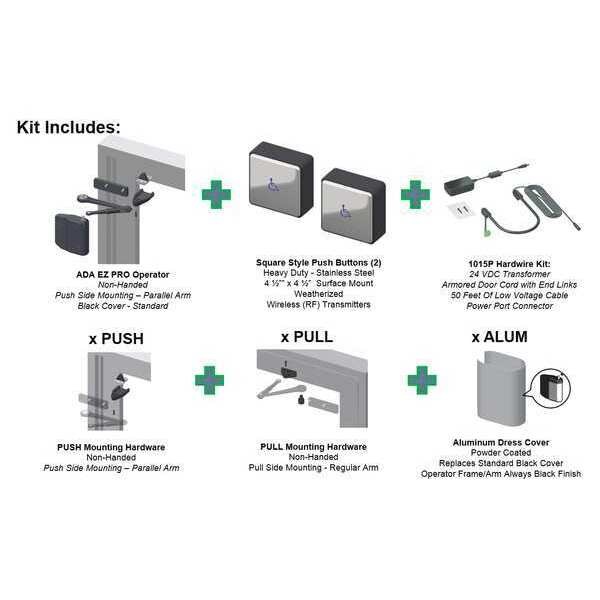

| Includes | 3 in Square Push Plates |
| Arm Material | Steel |
| Interior Door Width | 48 in |
| Projection from Wall | 7 in |
| Mounting Hardware | Included |
| ADA Compliant | Yes |
| Arm Type | Parallel, Regular |
| Ligature Resistant | No |
| Exterior Door Width | 48 in |
| Standards | ANSI/BHMA A156.19; UL/cUL Listed; Americans with Disabilities Act (ADA); UL10c Listed |
| Category Type | Top Jamb |
| Features | Functions Like Door Closer when Used Manually, Regenerative Drive Battery Captures Power Created by Manual Operation of Door, Shock Absorbing Arm |
| Door Handing | Non-Handed |
| Power Source | Battery |
| Series | 5800 |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Green Circle Certified |
| Green Environmental Attribute | Applicable to LEED Criteria |
| For Use With | Interior and Exterior Doors |
| Mounting Style | Top Frame |
| Spring Size - Maximum | 7 |
| Height Between Mounting Holes | Not Applicable |
| Includes Hardware | Hardware Included |
| ANSI/BHMA Finish | Aluminum Painted |
| Spring Size - Minimum | 1 |
| Door Weight - Maximum | 250 lb |
| Door Opening - Maximum | 95 deg |
| Exterior Door Width - Minimum | Not Applicable |
| Compatible Manufacturer Model Number | Not Applicable |
| Power Level | Low Energy |
| UL Fire Rating | UL10C |
| Interior/Exterior Use | Interior, Exterior |
| Interior Door Width - Minimum | Not Applicable |
| Length Between Mounting Holes | Not Applicable |
| Ligature-Resistant | Not Ligature-Resistant |
| Projection | 7 in |
| Door Weight - Minimum | 40 lb |
| Compatible Series | Not Applicable |
| Fire Rating | 90 min |
| Interior Door Width - Maximum | 48 in |
| Exterior Door Width - Maximum | 48 in |
| Spring Type | Adjustable |
| Door Opening - Minimum | 95 deg |
| Performance Grade | 1 |
| Operator Cycles | 10,000,000 |
| Compatible Brand | Norton |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
