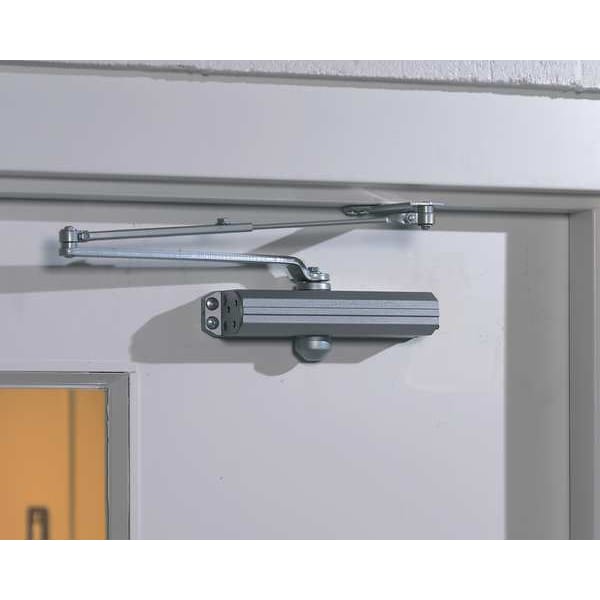

Manual, Hydraulic, Norton 1600, Door Closer, Heavy Duty Interior and Exterior, Gray
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel, Regular, Top Jamb |
| Closer Performance | Heavy Duty |
| Closer Series | Norton 1600 |
| Closer Type | Non Hold Open |
| Color | Gray |
| Finish | Aluminum |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-7/8 in |
| Housing Height | 2-5/8 in |
| Housing Length | 9-3/4 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Aluminum |
| Fire Rating - Door Hardware | 3 hr |
| ADA Compliant | Yes |
| Ligature Resistant | No |
| Arm Type | Parallel, Regular |
| Spring Size | 2-6 |
| Max. Door Opening | 180 Degrees |
| Exterior Door Width | 48 in |
| Projection from Wall | 2-7/8 in |
| Interior Door Width | 48 in |
| Standards | ANSI/BHMA A156.4 Grade 1 Certified; UL/cUL Listed; Americans with Disabilities Act (ADA); ANSI/BHMA Standard A117.1 |
| Category Type | Concealed |
| Series | 1600 |
| Features | 1 3/8 in dia Piston, Staked Valves, Tri-Packed |
| Door Handing | Non-Handed |
| Type | Industrial |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration) |
| Hand | Non-Handed |
| Mounting Style | Top Frame |
| Compatible Series | Not Applicable |
| Door Weight - Maximum | 250 lb |
| Interior Door Width - Maximum | 48 in |
| Fire Rating | 3 hr |
| ANSI/BHMA Finish | Aluminum Painted |
| Spring Type | Adjustable |
| Compatible Brand | NORTON RIXSON |
| Compatible Manufacturer Model Number | Not Applicable |
| Length Between Mounting Holes | 9-1/16 in |
| Product Type | Door Closer |
| UL Fire Rating | UL10C |
| Door Opening - Maximum | 180 deg |
| Operation Style | Manual |
| Height Between Mounting Holes | 3/4 in |
| Performance Grade | 1 |
| Interior/Exterior Use | Interior, Exterior |
| Projection | 2-7/8 in |
| Exterior Door Width - Maximum | 48 in |
| Spring Size - Minimum | 1 |
| Spring Size - Maximum | 6 |
| Ligature-Resistant | Not Ligature-Resistant |
| Closer Cycles | 25,000,000 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
