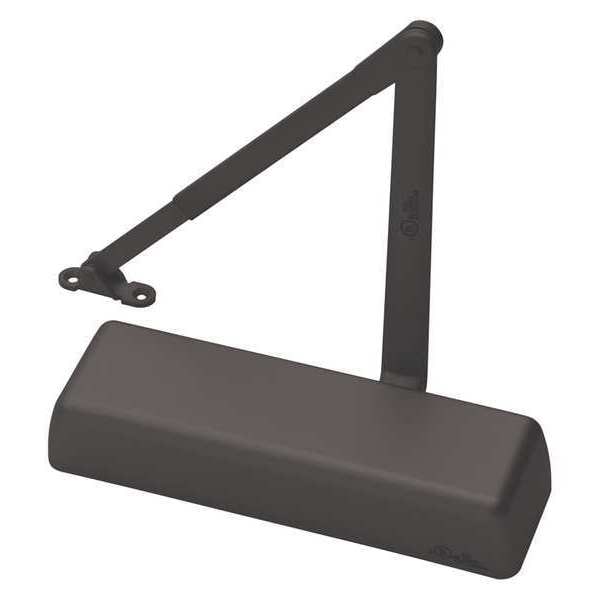

Manual, Hydraulic, Norton 410, Door Closer, Heavy Duty Interior and Exterior, Dark Bronze
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel, Regular, Top Jamb |
| Closer Performance | Heavy Duty |
| Closer Series | Norton 410 |
| Closer Type | Non Hold Open |
| Color | Dark Bronze |
| Finish | Dark Bronze |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-1/4 in |
| Housing Height | 3-1/2 in |
| Housing Length | 12-1/4 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Iron |
| Interior Door Width | 48 in |
| Arm Material | Steel |
| Spring Size | Adjustable 1 to 6 |
| Ligature Resistant | No |
| Max. Door Opening | 180 Degrees |
| Includes | Full Cover, Mounting Template |
| Standards | ANSI/BHMA A156.4 Grade 1; UL/cUL Listed; UL10C Listed; ADA Compliant; ANSI/BHMA A117.1 |
| Fire Rating - Door Hardware | 3 hr |
| Mounting Hardware | Included |
| ADA Compliant | Yes |
| Arm Type | Parallel, Regular |
| Projection from Wall | 2-1/4 in |
| Exterior Door Width | 54 in |
| Category Type | Parallel Arm |
| Series | 410 |
| Features | Tri-Packed |
| Door Handing | Non-Handed |
| For Use With | Interior and Exterior Doors |
| Mounting Style | Tri-Packed |
| Compatible Brand | NORTON RIXSON |
| Compatible Manufacturer Model Number | Not Applicable |
| Spring Size - Minimum | 1 |
| Product Type | Door Closer |
| Fire Rating | 3 hr |
| Operation Style | Manual |
| Performance Grade | 1 |
| Exterior Door Width - Maximum | 54 in |
| Spring Type | Adjustable |
| Spring Size - Maximum | 6 |
| Door Weight - Maximum | 250 lb |
| Length Between Mounting Holes | 5 in |
| Compatible Series | Not Applicable |
| ANSI/BHMA Finish | Painted |
| Interior Door Width - Maximum | 48 in |
| Door Opening - Maximum | 180 deg |
| Interior/Exterior Use | Interior, Exterior |
| Ligature-Resistant | Not Ligature-Resistant |
| Projection | 2-1/4 in |
| Includes Hardware | Hardware Included |
| Closer Cycles | 25,000,000 |
| Height Between Mounting Holes | 2-1/4 in |
| UL Fire Rating | UL10C |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
