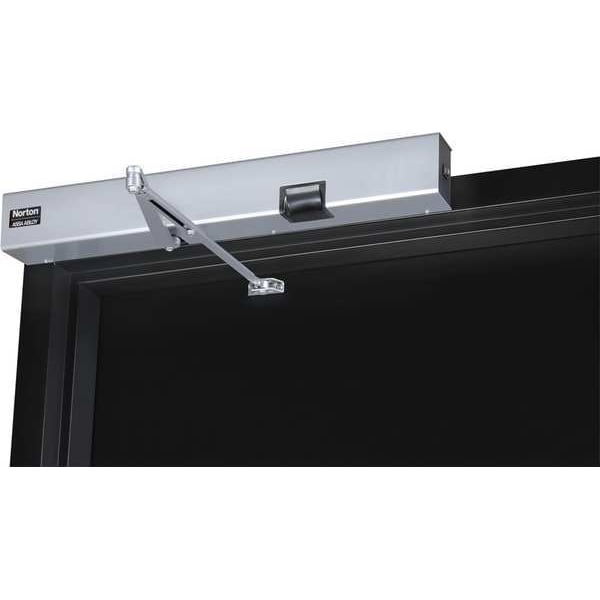

Manual, Hydraulic, Norton 7100SZ, Door Closer, Heavy Duty Interior and Exterior, Gray
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Pull |
| Closer Performance | Heavy Duty |
| Closer Series | Norton 7100SZ |
| Closer Type | Electronically Controlled |
| Color | Gray |
| Finish | Aluminum |
| Hand Orientation | Left Hand |
| Housing Depth | 2-11/16 in |
| Housing Height | 4 in |
| Housing Length | 26-11/16 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Aluminum |
| Ligature Resistant | No |
| Interior Door Width | Up to 40 in |
| Projection from Wall | 2-5/8 in |
| Spring Size | Adjustable 3 to 6 |
| Standards | ANSI/BHMA A156.4 Grade 1; UL/cUL Listed; UL10C Listed; ADA Compliant; ANSI/BHMA A117.1 |
| Arm Type | Slide Track Pull Side |
| ADA Compliant | Yes |
| Exterior Door Width | Up to 40 in |
| Max. Door Opening | 180 Degrees |
| Includes | Sensor to Detect Motion In Both Directions |
| Category Type | Regular Arm |
| Power Source | Electrical |
| Door Handing | Left Hand |
| Type | Hold Open |
| Series | 7100SZ |
| Features | Metal Cover, Selectable Hold Open Time and Sensitivity, Sensor Detects Movement In Both Directions, Staked Valves |
| For Use With | Interior and Exterior Fire or Non Fire Rated Doors |
| Hand | Left Hand |
| Mounting Style | Push Side Double Lever |
| Interior Door Width - Minimum | Not Applicable |
| Length Between Mounting Holes | Not Applicable |
| Height Between Mounting Holes | Not Applicable |
| Projection | 2-5/8 in |
| Compatible Brand | Norton |
| Interior/Exterior Use | Interior, Exterior |
| Interior Door Width - Maximum | 40 in |
| ANSI/BHMA Finish | Aluminum Painted |
| Spring Type | Adjustable |
| UL Fire Rating | UL10C |
| Ligature-Resistant | Not Ligature-Resistant |
| Exterior Door Width - Maximum | 40 in |
| Door Opening - Maximum | 180 deg |
| Compatible Series | Not Applicable |
| Spring Size - Maximum | 6 |
| Spring Size - Minimum | 3 |
| Exterior Door Width - Minimum | Not Applicable |
| Fire Rating | 3 hr |
| Door Opening - Minimum | 165 deg |
| Compatible Manufacturer Model Number | Not Applicable |
| Performance Grade | 1 |
| Power Level | Low Energy |
| Door Weight - Minimum | 40 lb |
| Door Weight - Maximum | 250 lb |
| Operator Cycles | 1,000,000 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
