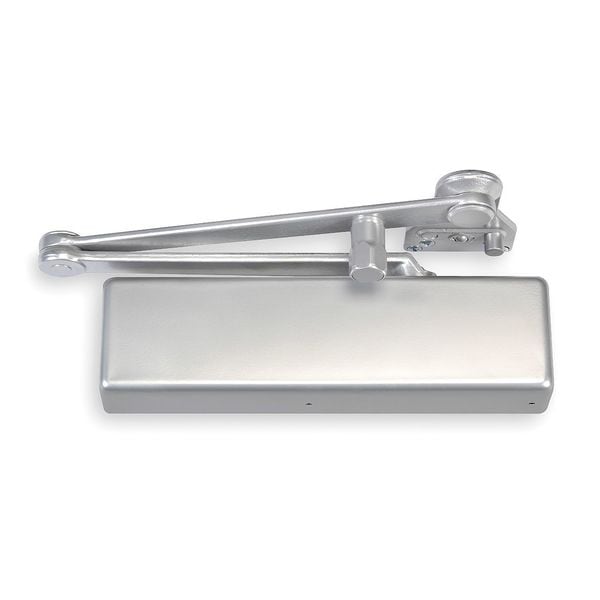

Manual, Hydraulic, Norton 7570, Door Closer, Heavy Duty Interior and Exterior, Gray
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel |
| Closer Performance | Heavy Duty |
| Closer Series | Norton 7570 |
| Closer Type | Hold Open |
| Color | Gray |
| Finish | Aluminum |
| Hand Orientation | Left Hand |
| Housing Depth | 2-3/16 in |
| Housing Height | 3-3/4 in |
| Housing Length | 13-5/8 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Aluminum |
| Interior Door Width | 54 in |
| ADA Compliant | Yes |
| Spring Size | Adjustable 1 to 6 |
| Ligature Resistant | No |
| Arm Type | Parallel |
| Standards | ANSI A156.4 Grade1; UL/cUL Listed; UL10C Listed; Americans with Disabilities Act (ADA); ANSI Standard A117.1; ISO 9001, ISO 14001 |
| Max. Door Opening | 110 Degrees |
| Arm Material | Die Cast Aluminum |
| Includes | Deep Drawn Steel Cover |
| Exterior Door Width | 48 in |
| Category Type | Top Jamb |
| Series | 7570 |
| Features | Adjustable Backcheck Cushioning and Positioning, Slide Track - Push or Pull Side Mounting |
| Door Handing | Left Hand |
| Type | Institutional with Hold Open |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative, Declare |
| Mounting Style | Top Frame |
| Hand | Left Hand |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Weight - Maximum | 250 lb |
| Closer Cycles | 25,000,000 |
| Compatible Brand | NORTON RIXSON |
| Compatible Series | Not Applicable |
| Spring Size - Minimum | 1 |
| Performance Grade | 1 |
| Interior Door Width - Maximum | 48 in |
| Stop Type | Spring |
| Interior/Exterior Use | Interior, Exterior |
| Spring Type | Adjustable |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Height Between Mounting Holes | 2-3/8 in |
| UL Fire Rating | UL10C |
| Length Between Mounting Holes | 6-3/4 in |
| Spring Size - Maximum | 6 |
| Door Opening - Maximum | 110 deg |
| ANSI/BHMA Finish | Aluminum Painted |
| Compatible Manufacturer Model Number | Not Applicable |
| Fire Rating | 3 hr |
| Operation Style | Manual |
| Door Opening - Minimum | 85 deg |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
