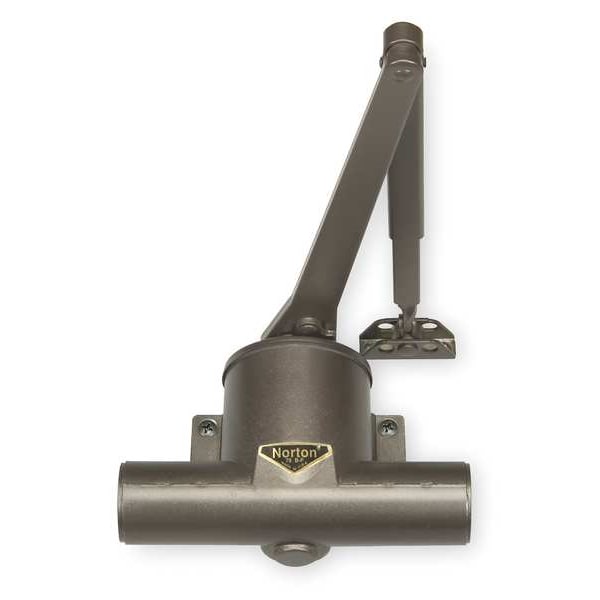

Manual, Hydraulic, Norton 78-E/F, Door Closer, Heavy Duty Interior and Exterior, Dark Bronze
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Regular |
| Closer Performance | Heavy Duty |
| Closer Series | Norton 78-E/F |
| Closer Type | Non Hold Open |
| Color | Dark Bronze |
| Finish | Statuary Bronze |
| Hand Orientation | Left Hand |
| Housing Depth | 3-1/2 in |
| Housing Height | 5-1/8 in |
| Housing Length | 7-1/2 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Aluminum |
| Projection from Wall | 4-5/8 in |
| Fire Rating - Door Hardware | 3 hr |
| Max. Door Opening | 180 Degrees |
| Interior Door Width | 48 in |
| Spring Size | 2-4 |
| Standards | UL and cUL Listed; UL10C Listed |
| ADA Compliant | No |
| Ligature Resistant | No |
| Exterior Door Width | 36 in |
| Arm Type | Regular |
| Category Type | Regular Arm |
| Door Handing | Left Hand |
| Type | Institutional, Interior/Exterior, Pot Belly |
| Series | 78-B/F |
| Hand | Left Hand |
| Mounting Style | Regular Arm |
| Stop Type | Spring |
| Ligature-Resistant | Not Ligature-Resistant |
| Projection | 4-5/8 in |
| Exterior Door Width - Maximum | 36 in |
| Fire Rating | 3 hr |
| Product Type | Door Closer |
| Compatible Manufacturer Model Number | Not Applicable |
| Closer Cycles | 25,000,000 |
| Compatible Brand | NORTON RIXSON |
| Height Between Mounting Holes | 1-3/8 in |
| Door Weight - Maximum | 250 lb |
| Interior Door Width - Maximum | 48 in |
| Spring Size - Minimum | 2 |
| Door Opening - Maximum | 180 deg |
| Interior/Exterior Use | Interior, Exterior |
| Operation Style | Manual |
| Spring Size - Maximum | 4 |
| UL Fire Rating | UL10C |
| Performance Grade | 1 |
| Compatible Series | Not Applicable |
| Length Between Mounting Holes | 3-3/8 in |
| ANSI/BHMA Finish | Painted |
| Spring Type | Adjustable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
