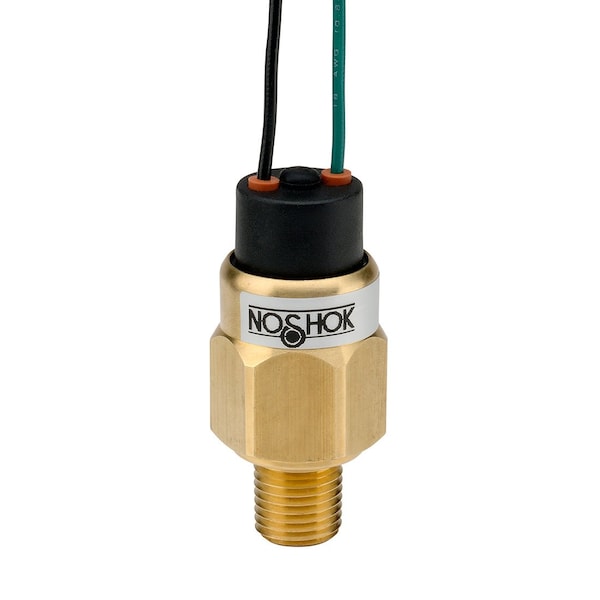

Interruptor de presión Serie 100, de latón, de un solo polo y un solo tiro normalmente cerrado (SPST, NC), de 1/8" NPT, de -3 a -25 pulgadas de mercurio de vacío (-3 a -25"Hg Vac), con torre Weatherpack.
| Item | Mechanical Pressure Switch |
|---|---|
| Pressure Switch Application | Hydraulics and Pneumatics, Pumps and Compressors, Tank Monitoring, Leak Detection, Water Management |
| Pressure Switch Factory On/Off Setting | Field Adjustable and/or Factory Set |
| Pressure Switch Electrical Contact Form | Single Pole Single Throw, Normally Closed |
| Pressure Switch Action | Creep |
| DC Contact Rating | 100 VA |
| Ambient Temp. Range | -13 to 185 deg F |
| Housing Material | Brass |
| Max. Pressure | 350 psi |
| Electrical Connection | 2-Pin Female Attached to Flying Leads |
| Amps | 2 A |
| IP Rating | IP69 |
| Wetted Materials | Brass, NBR |
| Process Connection | 1/8" NPT |
| Series | 100 |
| Media Temp. Range | -13 to 185 deg F |
| Package Quantity | 1 |
