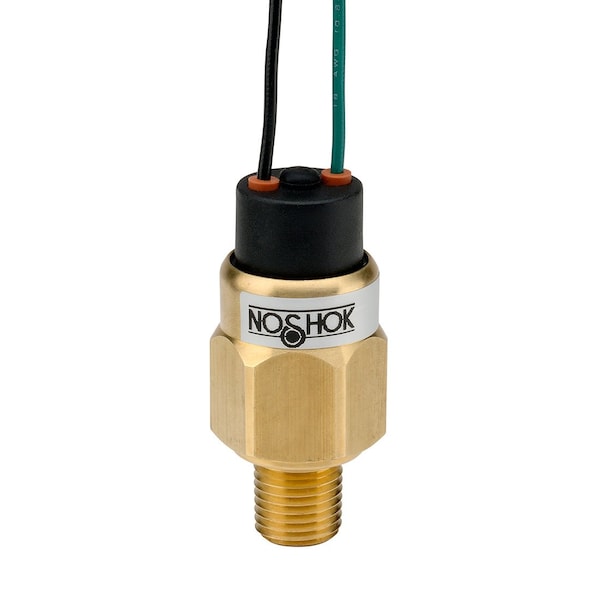

Interruptor de presión de la serie 100, acero, SPST, normalmente cerrado, 1/8" NPT, 3000-6000 psi, Deutsch macho de 2 pines
| Item | Mechanical Pressure Switch |
|---|---|
| Pressure Switch Application | Hydraulics and Pneumatics, Pumps and Compressors, Tank Monitoring, Leak Detection, Water Management |
| Pressure Switch Factory On/Off Setting | Field Adjustable and/or Factory Set |
| Pressure Switch Electrical Contact Form | Single Pole Single Throw, Normally Closed |
| Pressure Switch Action | Creep |
| Media Temp. Range | -13 to 185 deg F |
| Process Connection | 1/8" NPT |
| Electrical Connection | 2-Pin Male Attached to Flying Leads |
| IP Rating | IP69 |
| Max. Pressure | 9,000 psi |
| Housing Material | Steel |
| Series | 100 |
| Ambient Temp. Range | -13 to 185 deg F |
| Amps | 2 A |
| DC Contact Rating | 100 VA |
| Wetted Materials | Steel, NBR |
| Package Quantity | 1 |
